Double Levels PCB Terminal Block with 5.08mm Pitch and 300V 10A Rating for Secure Connections
-
Highlight
300V PCB Terminal Block
,Green PCB Terminal Block
,Double Levels PCB Terminal Block
-
ColorGreen
-
Pitch5.08mm
-
PlasticPA66
-
Volt300V
-
Current10A
-
PolesAny Poles Available
-
Inflammability ClassUL94-V0
-
TerminalBrass
-
PlatingNickel Plated
-
Stripping Length6-7mm
-
Place of OriginGuangdong China
-
Brand NameSCED
-
CertificationCE,UL,CUL,CQC,VDE etc.
-
Model NumberTJ508-10
-
Minimum Order Quantity500 Piece/Pieces
-
PriceUSD 0.061-0.122
-
Packaging Details5-20 days
-
Payment TermsT/T,L/C
-
Supply Ability1000000 Pole/Poles per Month

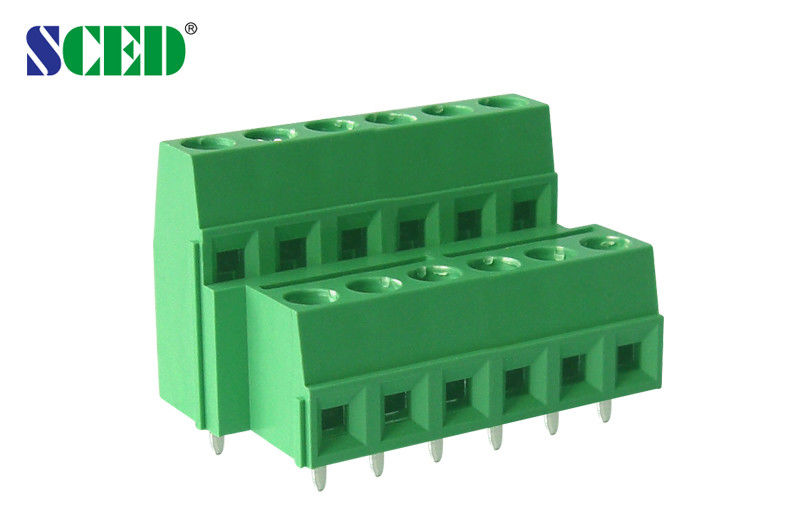

Double Levels PCB Terminal Block with 5.08mm Pitch and 300V 10A Rating for Secure Connections
Double Levels PCB Terminal Block Green 5.08mm 300V 10A Plastic PA66
Product Overview
Double Levels PCB Terminal Block featuring 5.08mm pitch, 300V 10A rating, and constructed from durable PA66 plastic material. Available in standard green with other color options upon request.
- Pitch: 5.08mm
- Rating: 300V 10A
- Configuration: 2P-24P
- Type: PCB Terminal blocks - Euro type Raising series
- Wire Inlet Options: Right angle, Vertical, 45 degree
- Deck Options: Single, Double, Triple decks
Applications
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Elevator, and more.
Technical Specifications
| UL Technical Data | B | C | D |
|---|---|---|---|
| Rated Voltage / Current V/A | 300/10 | 300/10 | |
| Wire Range AWG | 12-26 | 12-26 |
| IEC Technical Data | |
|---|---|
| Overvoltage Category | Ⅲ |
| Contamination Class | 3 |
| Rated Voltage / Current V/A | 250 / 10 |
| Rated Surge Voltage KV | 4 |
| Rated Connecting Capacity mm² | 1.5 |
| Material Specifications | |
|---|---|
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 |
| Clamp Cage / Plating | Brass / Nickel Plated |
| Terminal / Plating | Brass / Tin Plated |
| Screw / Plating | Steel / Zinc Plated |
| Other Technical Data | |
|---|---|
| PCB Hole Diameter mm | φ1.4 |
| Stripping Length mm | 6-7 |
| Screw / Torque / lbf.in | M3 / 4.4-5.3 |
Competitive Advantages
- Stable good quality
- Competitive price
- Quick response time
- Full range of products for selection
- Flexible customization to meet specific customer requirements
