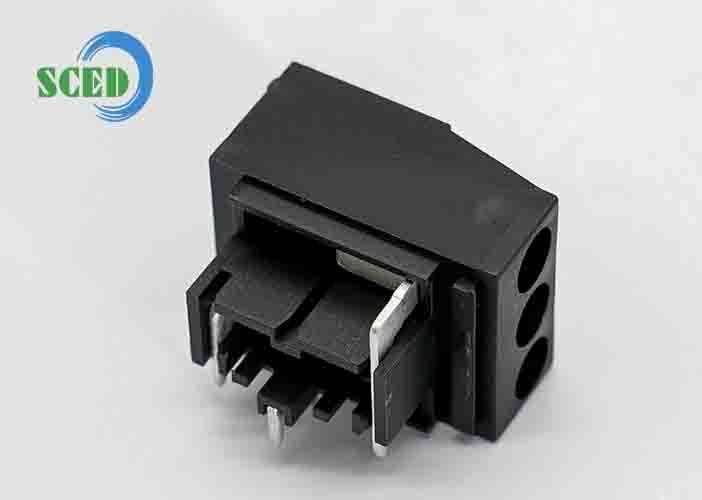

PCB Terminal Block with 2P-24P Poles, 1000MΩ/min Insulation Resistance, and Through Hole Mounting for Secure PCB Connections
-
Highlight
2P-24P Poles PCB Terminal Block
,1000MΩ/min Insulation Resistance PCB Terminal Block
,Through Hole Mounting PCB Terminal Block
-
Pole2P-24P
-
Voltage300V
-
Contact Numbers2-24 Poles
-
Withstand VoltageAC2000V/min
-
Number Of Rows1/2/3/4/5/6
-
Insulation Resistance1000MΩ/min
-
MountingtypeThrough Hole
-
FinishTin Plated
-
Brand NameSCED
-
CertificationCE, ISO9001
-

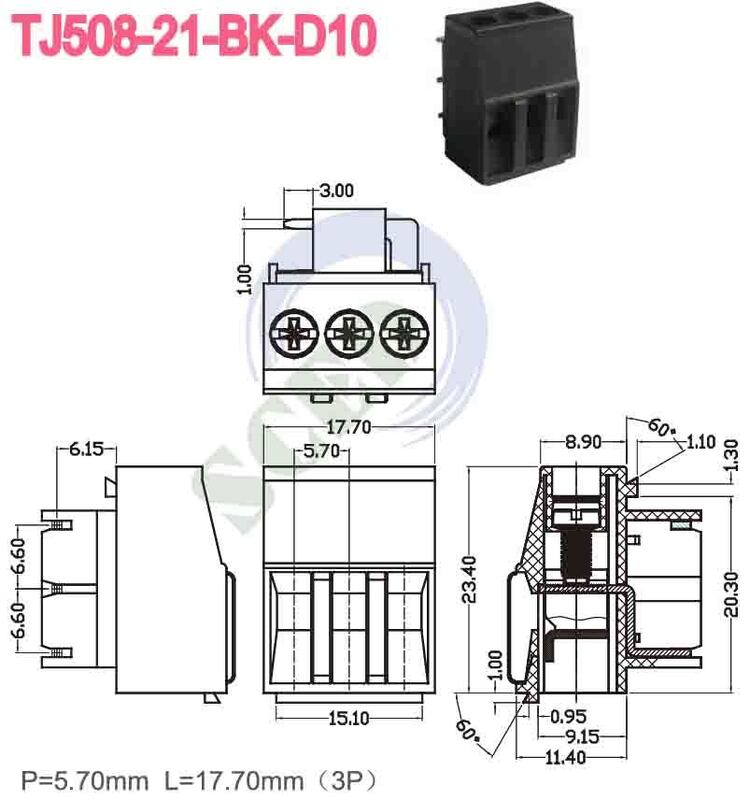

Model NumberTJ508-21
-
Minimum Order Quantity500
-
PriceGet Latest Price
-
Packaging DetailsCarton Box
-
Delivery Time50 Day(s)
-
Payment TermsT/T,AliPay,PayPal
-
Supply Ability100000pcs/day
PCB Terminal Block with 2P-24P Poles, 1000MΩ/min Insulation Resistance, and Through Hole Mounting for Secure PCB Connections
PCB Terminal Block Connector System
The PCB Terminal Block is an essential electronic connector designed to provide reliable and secure connections between electrical wires and printed circuit boards. With through-hole mounting for robust mechanical stability and excellent electrical performance, this terminal block is ideal for industrial control systems, automation equipment, and consumer electronics.
Product Features
- Product Name: PCB Terminal Block
- Type: Electronic connector for secure circuit connections
- Insulation Resistance: 1000MΩ/min ensuring reliable insulation
- Number of Positions: Available in 2, 3, 4, 5, 6, 8, 10, 12, and 14 positions
- Mounting Type: Through Hole for stable PCB attachment
- Stripping Length: 9-10mm for optimal wire preparation
- Withstand Voltage: AC 2000V/min guaranteeing high voltage durability
- High-quality electronic connector contacts for excellent conductivity
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40℃ To +105℃ |
| Stripping Length | 9-10mm |
| Voltage | 300V |
| Connection Type | Screw Clamp |
| Mounting Type | Through Hole |
| Number Of Contacts | 2P-16P |
| Number Of Positions | 2/3/4/5/6/8/10/12/14 |
| Contact Numbers | 2-24 Poles |
| Number Of Rows | 1/2/3/4/5/6 |
| Insulation Resistance | 1000MΩ/min |
Applications
The SCED PCB Terminal Block is designed for various applications requiring secure electrical connections. Ideal for industrial automation, control panels, home appliances, communication equipment, automotive electronics, power supplies, and consumer electronics. CE and ISO9001 certified for quality assurance.
Customization Options
SCED offers comprehensive customization services for PCB Terminal Blocks. Available in 1 to 6 rows with 2P to 16P contacts. Features tin-plated finish for enhanced durability and corrosion resistance. Minimum order quantity of 500 pieces with supply capacity of 100,000 pieces per day.
Support & Services
Comprehensive technical support including product selection, application guidance, troubleshooting, and customization options. Experienced engineers available for design assistance. Detailed datasheets, CAD models, and application notes provided to facilitate your design process.
Packing & Shipping
Each PCB Terminal Block is packaged in anti-static bags with cushioning materials in sturdy cardboard boxes. Bulk orders are palletized and stretch-wrapped for secure shipping. Various shipping options available including standard, expedited, and express services.
Frequently Asked Questions
What certifications does the SCED PCB Terminal Block have?
The SCED PCB Terminal Block is certified with CE and ISO9001, ensuring high quality and safety standards.
What is the minimum order quantity for the SCED PCB Terminal Block?
The minimum order quantity for the SCED PCB Terminal Block is 500 pieces.
How can I get the price for the SCED PCB Terminal Block?
To get the latest price for the SCED PCB Terminal Block, please contact our sales team or visit our official website.
What are the payment terms available for purchasing the SCED PCB Terminal Block?
We accept payment via T/T (Telegraphic Transfer), AliPay, and PayPal for your convenience.
What is the typical delivery time and packaging for the SCED PCB Terminal Block?
The delivery time is usually 50 days, and the products are securely packed in carton boxes to ensure safe transportation.
