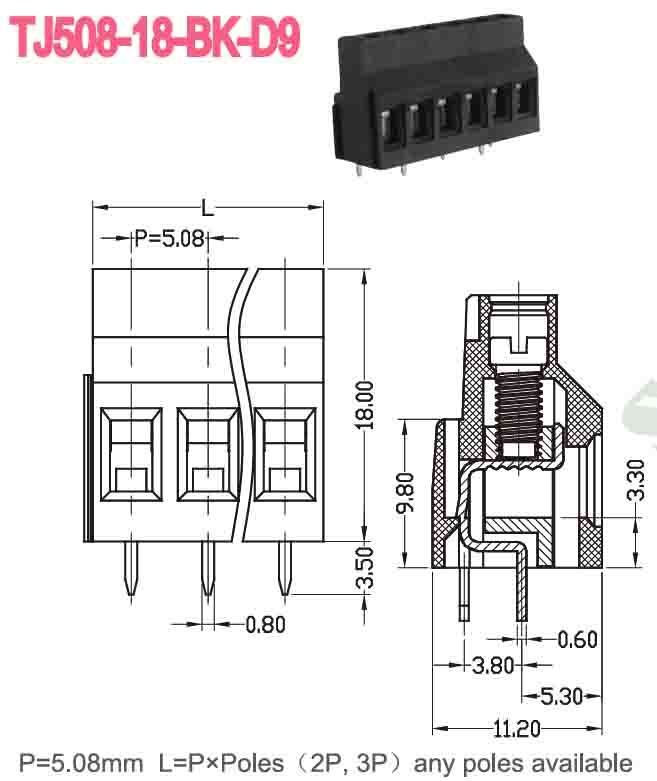

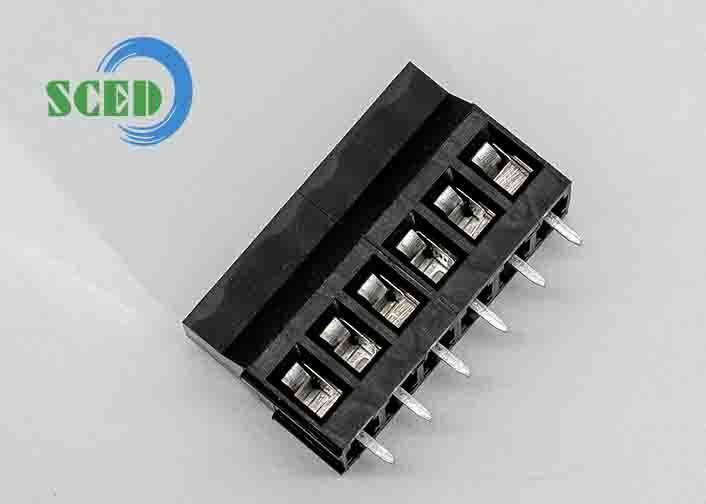

Tin Plated PCB Terminal Block with 2P-16P Contacts for Through Hole Mounting in Electronic Assemblies
-
Highlight
Tin Plated PCB Terminal Block
,2P-16P Contacts Electronic Connector
,Through Hole Mounting PCB Mount Terminal Block
-
Insulation Resistance1000MΩ/min
-
FinishTin Plated
-
Current10A
-
Operating Temperature-40℃ To +105℃
-
Number Of Contacts2P-16P
-
MountingtypeThrough Hole
-
Voltage300V
-
Number Of Positions2/3/4/5/6/8/10/12/14
-
Brand NameSCED
-
CertificationCE, ISO9001
-
Model NumberTJ508-18
-
Minimum Order Quantity500
-
PriceGet Latest Price
-
Packaging DetailsCarton Box
-
Delivery Time50 Day(s)
-
Payment TermsT/T,AliPay,PayPal
-
Supply Ability100000pcs/day
Tin Plated PCB Terminal Block with 2P-16P Contacts for Through Hole Mounting in Electronic Assemblies
2 to 24 Poles Electronic Connector with Tin Plated Contacts
This PCB Terminal Block provides secure and reliable connections between electrical circuits and printed circuit boards. Engineered for versatility and robustness, it meets the demanding requirements of modern electronic devices with seamless integration into various electrical systems.
Key Specifications
• Contacts: 2P to 24P
• Mounting: Through Hole
• Temperature Range: -40℃ to +105℃
• Voltage Rating: 300V
• Rows: 1 to 6 rows available
Product Features
- Tin Plated contacts for enhanced corrosion resistance
- Through Hole mounting for secure and reliable installation
- Screw Clamp connection ensuring firm and stable contact
- Insulation Resistance: 1000MΩ/min providing excellent electrical isolation
- Withstand Voltage: AC2000V/min for high voltage durability
- Efficient electronic connector for various PCB applications
- High-quality terminal block ensuring reliable contact and connectivity
Technical Parameters
| Parameter | Specification |
|---|---|
| Operating Temperature | -40℃ to +105℃ |
| Insulation Resistance | 1000MΩ/min |
| Pole | 2P-24P |
| Number of Positions | 2/3/4/5/6/8/10/12/14 |
| Wire Inlet | Right Angle |
| Mounting Type | Through Hole |
| Connection Type | Screw Clamp |
| Number of Rows | 1/2/3/4/5/6 |
| Number of Contacts | 2P-16P |
| Stripping Length | 9-10mm |
Applications
This CE and ISO9001 certified PCB Terminal Block is widely used in control panels, industrial machinery, home automation systems, electrical panel assembly, prototyping, consumer electronics manufacturing, automation equipment, HVAC systems, and renewable energy installations like solar panels.
With a minimum order quantity of 500 pieces and supply capacity of 100,000 pcs per day, it's ideal for both large-scale production and small-scale projects requiring reliable electrical connections in harsh environments.
Customization Options
SCED offers comprehensive customization with positions ranging from 2 to 14, 1 to 6 rows, screw clamp connections, right angle wire inlet, and through hole mounting. Custom packaging and labeling available upon request.
Delivery time is approximately 50 days with payment options including T/T, AliPay, and PayPal.
Support & Services
Our technical support team provides product selection guidance, installation assistance, troubleshooting, and maintenance tips. We offer customized solutions, product training for engineers and technicians, and timely updates on product enhancements and industry standards.
Packing & Shipping
Each terminal block is packaged in anti-static bags within sturdy cardboard boxes with cushioning materials. Bulk orders are organized in trays or reels with clear labeling. Shipping via reliable carriers with tracking and insurance options available.
Frequently Asked Questions
What certifications does the SCED PCB Terminal Block have?
The SCED PCB Terminal Block is certified with CE and ISO9001, ensuring high quality and compliance with international standards.
What is the minimum order quantity?
The minimum order quantity is 500 pieces.
How can I get pricing information?
Contact the supplier directly for the latest pricing, as it varies based on order quantity and specifications.
What payment methods are accepted?
We accept T/T (Telegraphic Transfer), AliPay, and PayPal.
What is the delivery time and packaging?
Typical delivery time is 50 days, with products securely packed in carton boxes for safe transportation.
