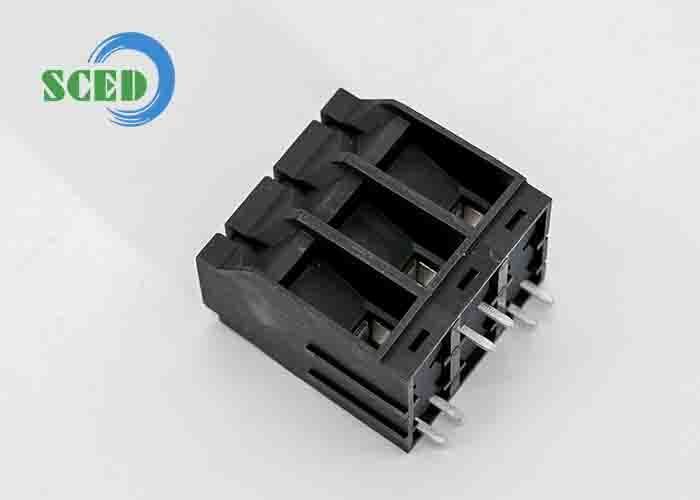

Right Angle Wire Inlet PCB Terminal Block with Tin Plated Finish and 2P-24P Contacts for Secure Electrical Connections
-
Highlight
Right Angle Wire Inlet PCB Terminal Block
,Tin Plated Finish Electronic Connector
,2P-24P Contacts Terminal Block Connector
-
Contact Numbers2-24 Poles
-
MountingtypeThrough Hole
-
Wire InletRight Angle
-
Stripping Length9-10mm
-
FinishTin Plated
-
Pole2P-24P
-
Number Of Contacts2P-16P
-
Voltage300V
-
Brand NameSCED
-
CertificationCE, ISO9001
-
Model NumberTJ1000-01
-
Minimum Order Quantity500
-
PriceGet Latest Price
-
Packaging DetailsCarton Box
-
Delivery Time50 Day(s)
-
Payment TermsT/T,AliPay,PayPal
-
Supply Ability100000pcs/day
Right Angle Wire Inlet PCB Terminal Block with Tin Plated Finish and 2P-24P Contacts for Secure Electrical Connections
The PCB Terminal Block is a highly reliable electronic connector designed to provide secure and efficient connections in a wide range of electrical and electronic applications. Engineered to accommodate currents up to 10A, this terminal block ensures stable performance and safety, making it an ideal choice for both industrial and consumer electronics.
Key Features
- Available in 2P to 24P configurations for versatile applications
- Right-angle wire inlet for optimal space utilization
- Tin-plated contacts for enhanced conductivity and corrosion resistance
- Through-hole mounting for stable PCB attachment
- High insulation resistance: 1000MΩ/min
- Stripping length: 9-10mm for secure wire insertion
- Operating temperature range: -40°C to +105°C

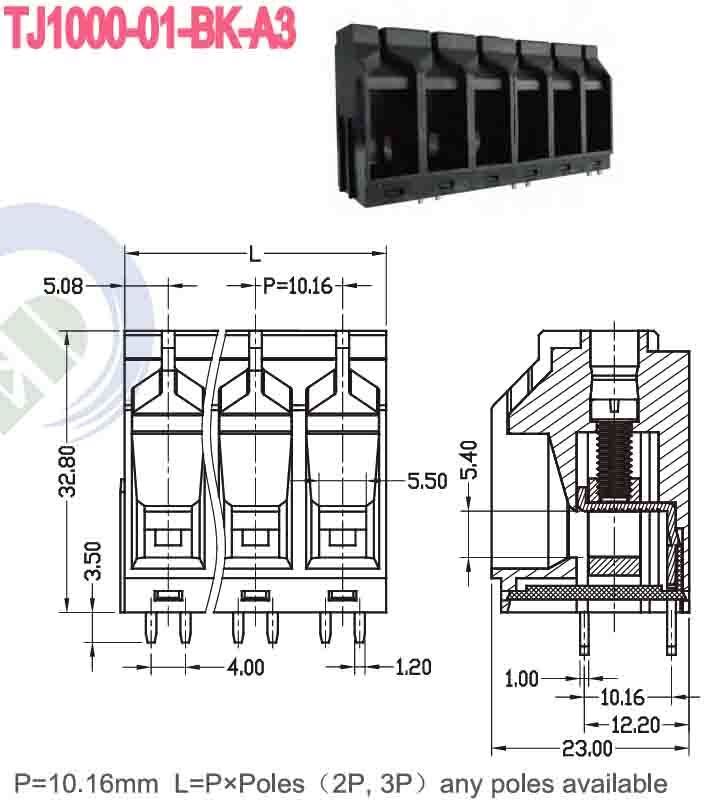

Technical Specifications
| Stripping Length | 9-10mm |
| Pole Configuration | 2P-24P |
| Wire Inlet | Right Angle |
| Voltage Rating | 300V |
| Finish | Tin Plated |
| Current Rating | 10A |
| Insulation Resistance | 1000MΩ/min |
| Number of Rows | 1/2/3/4/5/6 |
Applications
This versatile terminal block is widely used in industrial control systems, power supplies, automation equipment, and communication devices. Its flexible configurations support multiple rows (1-6) and various contact arrangements, making it suitable for diverse circuit designs in consumer electronics, industrial machines, and communication infrastructures.
Quality & Certifications
CE and ISO9001 certified for guaranteed quality and safety standards. Withstands voltage of AC2000V/min for excellent insulation and durability.
Ordering Information
Minimum order quantity: 500 pieces
Supply capacity: 100,000 pieces per day
Delivery time: 50 days
Payment methods: T/T, AliPay, PayPal
Packaging: Secure carton boxes
Supply capacity: 100,000 pieces per day
Delivery time: 50 days
Payment methods: T/T, AliPay, PayPal
Packaging: Secure carton boxes
Frequently Asked Questions
What certifications does the SCED PCB Terminal Block have?
The SCED PCB Terminal Block is certified with CE and ISO9001 standards, ensuring high quality and safety.
What is the minimum order quantity?
The minimum order quantity is 500 pieces.
How can I get pricing information?
Please contact our sales team directly for the latest pricing and quotes.
What is the typical delivery time?
The typical delivery time is 50 days after order confirmation.
What payment methods are accepted?
We accept T/T (Telegraphic Transfer), AliPay, and PayPal for your convenience.
