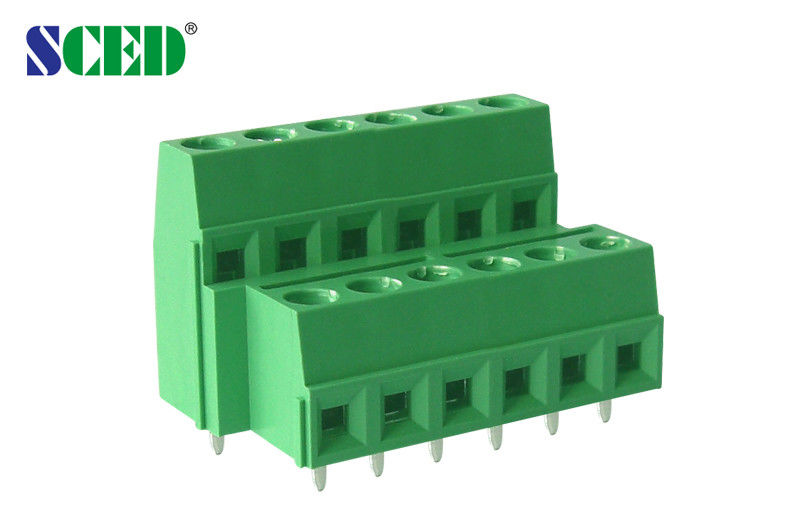

5.08mm Pitch Double Levels PCB Terminal Block with 300V 10A Rating and Nickel Plated Brass Contacts
-
Highlight
300V PCB Terminal Block
,Double Levels PCB Terminal Block
-
ColorGreen
-
Pitch5.08mm
-
PlasticPA66
-
Volt300V
-
Current10A
-
PolesAny Poles Available
-
Inflammability ClassUL94-V0
-
TerminalBrass
-
PlatingNickel Plated
-
Stripping Length6-7mm
-
Place of OriginGuangdong China
-
Brand NameSCED
-
CertificationCE,UL,CUL,CQC,VDE etc.
-
Model NumberTJ508-10
-
Minimum Order Quantity500 Piece/Pieces
-
PriceUSD 0.061-0.122
-
Packaging Details5-20 days
-
Payment TermsT/T,L/C
-
Supply Ability1000000 Pole/Poles per Month
5.08mm Pitch Double Levels PCB Terminal Block with 300V 10A Rating and Nickel Plated Brass Contacts
5.08mm Pitch Double Levels PCB Terminal Block with 300V 10A Rating and Double Decks
Product Overview
Double Levels PCB Terminal Block Green 5.08mm 300V 10A Plastic PA66
Pitch: 5.08mm, 300V 10A, 2P-24P
PCB Terminal blocks - Euro type Raising series
- ■ Right angle wire inlet
- □ Vertical wire inlet
- □ 45 degree wire inlet
- □ Single Deck
- ■ Double decks
- □ Triple decks
Standard color: Green. Other colors also available.
Applications
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Elevator, etc.
Technical Specifications
| UL Technical Data | B | C | D |
|---|---|---|---|
| Rated Voltage / Current V/A | 300/10 | 300/10 | |
| Wire Range AWG | 12-26 | 12-26 |
| IEC Technical Data | |
|---|---|
| Overvoltage Category | Ⅲ |
| Contamination Class | 3 |
| Rated Voltage / Current V/A | 250 / 10 |
| Rated Surge Voltage KV | 4 |
| Rated Connecting Capacity mm² | 1.5 |
| Material Specifications | |
|---|---|
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 |
| Clamp Cage / Plating | Brass / Nickel Plated |
| Terminal / Plating | Brass / Tin Plated |
| Screw / Plating | Steel / Zinc Plated |
| Other Technical Data | |
|---|---|
| PCB Hole Diameter mm | φ1.4 |
| Stripping Length mm | 6-7 |
| Screw / Torque / lbf.in | M3 / 4.4-5.3 |
Competitive Advantages
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers' demand
