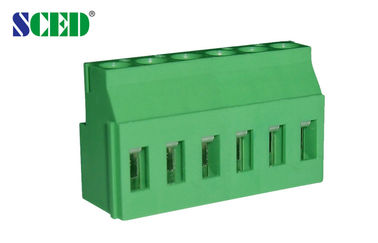

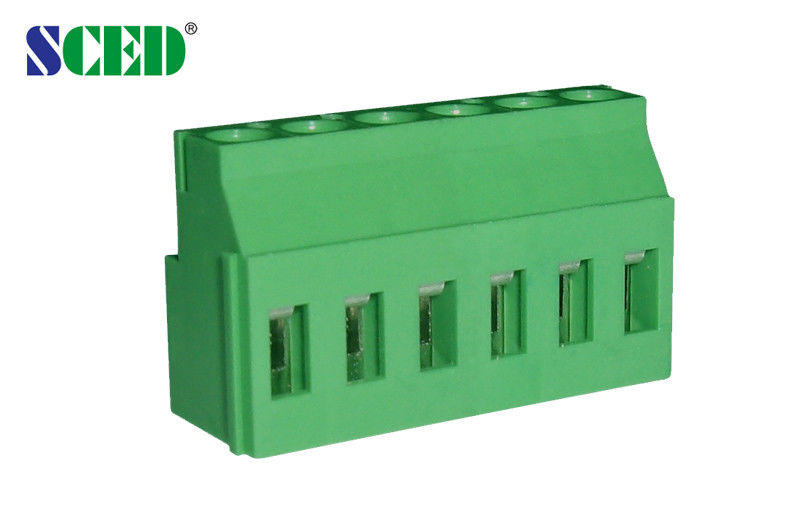

5.08mm Screw Clamp Connector electrical power distribution terminal blocks UL Certificated

5.08mm Screw Clamp Connector electrical power distribution terminal blocks UL Certificated

    • 5.08mm Screw Clamp Connector electrical power distribution terminal blocks UL Certificated
    • 5.08mm Screw Clamp Connector electrical power distribution terminal blocks UL Certificated
  • 5.08mm Screw Clamp Connector electrical power distribution terminal blocks UL Certificated

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ508-04

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Applications: PCB, Frequency Converters, Server Site, Etc. Number Of Contacts: 2P-24P
    Pitch: 5.08mm Rated Current: 10A
    Rated Voltage: 300V Type: PCB Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks



    5.08mm Screw Clamp Connector electrical power distribution terminal blocks UL Certificated



    Type:

    PCB Terminal blocks,

    Pitch:

    5.08mm

    Rated Voltage:

    300V

    Rated Current:

    10A

    Standard Color:

    Green, other color is available

    Number Of Contacts:

    2P-24P

    Wire Range:

    12-26AWG

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Elevator, etc.



    Euro type Raising series, Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks





    UL Technical Data

    B

    C

    D

    Rated Voltage / Current                V/A

    300/10



    300/10

    Wire Range                                   AWG

    12-26



    12-26

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    250 / 10

    400 / 10

    630 / 10

    Rated Surge Voltage                      KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.5

    Stripping Length                       mm

    7-8

    Screw / Torque                       / lbf.in

    M3 / 4.4-5.3





    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:

    5.08mm Screw Clamp Connector electrical power distribution terminal blocks UL Certificated

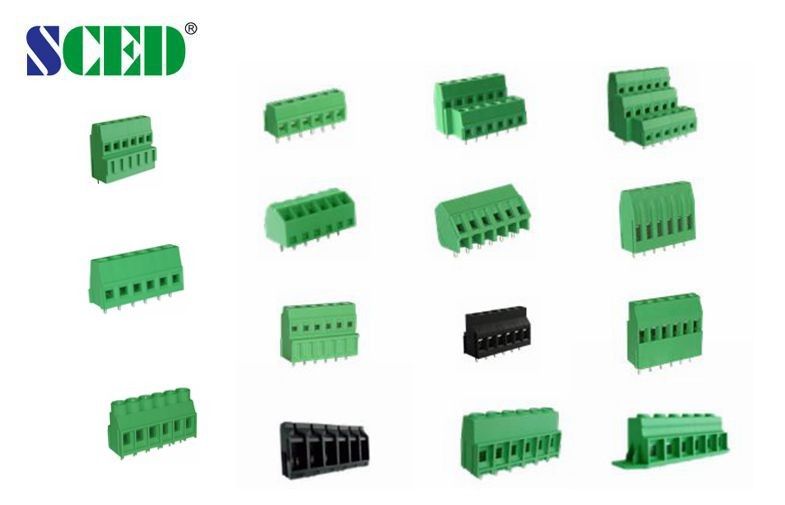

    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

     5.08mm Screw Clamp Connector electrical power distribution terminal blocks UL Certificated

    5.08mm Screw Clamp Connector electrical power distribution terminal blocks UL Certificated
