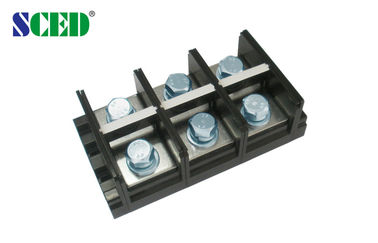

600V 500A High Current Terminal Block Heavy Voltage Electric Terminal Connector

600V 500A High Current Terminal Block Heavy Voltage Electric Terminal Connector

    • 600V 500A High Current Terminal Block Heavy Voltage Electric Terminal Connector
    • 600V 500A High Current Terminal Block Heavy Voltage Electric Terminal Connector
  • 600V 500A High Current Terminal Block Heavy Voltage Electric Terminal Connector

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR500-00-BM0

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Applications: PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
    Number Of Contacts: Any Poles Available Pitch: 60.00mm
    Rated Current: 500A Rated Voltage: 600V
    Type: High Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks Wire Range: 350-750kcmil

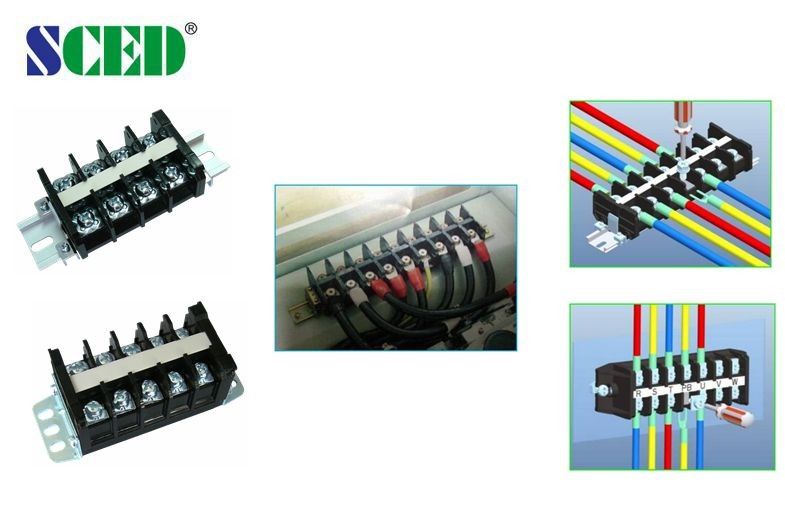

    600V 500A High Current Terminal Blocks Heavy Voltage Electric Terminal Connector







    Competitive Advantage:



    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand





    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Level;  □Double levels;  □Triple levels

    Standard color: Black. Other colors also available, please refer to below How to Order and select the color

    you want.

    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks





    How to order:

    600V 500A High Current Terminal Block Heavy Voltage Electric Terminal Connector





    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

    Elevator, etc..





    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 500

    600 / 500



    Wire Range                                AWG

    350-750kcmil

    350-750kcmil



    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    1000 / 500

    1000 / 500

    1000 / 500

    Rated Surge Voltage                     KV

    10

    10

    10

    Rated Connecting Capacity           mm2

    380

    Material



    Insulation Material / Inflammability Class

    PC / UL94, V-0

    Terminal / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    30-35

    Screw / Torque                    / lbf.in

    M12 / 200-213





    600V 500A High Current Terminal Block Heavy Voltage Electric Terminal Connector
