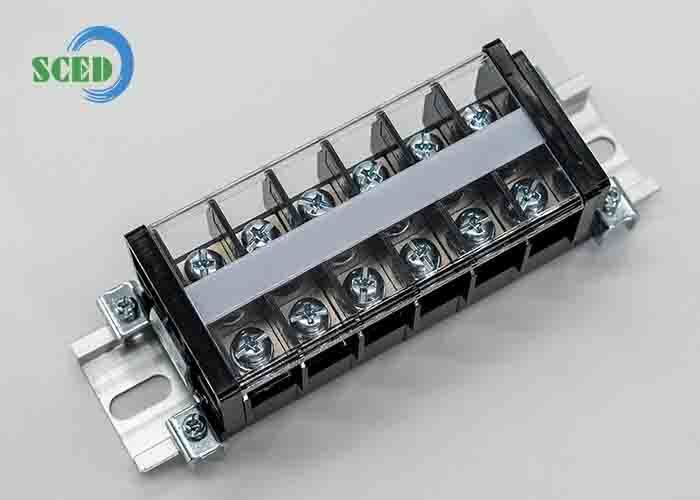

High Current Terminal Block with 175A Rated Current UL94 V-0 Flammability for Industrial Power Distribution
-
Highlight
175A high current terminal block
,UL94 V-0 terminal block
,industrial power distribution terminal block
-
Operating Temperature-40°C To 105°C
-
Flammability RatingUL94 V-0
-
ConnectiontypeScrew Clamp
-
ApplicationIndustrial Power Distribution
-
ApprovalsCE, RoHS
-
Wire Range300-750kcmil
-
Number Of Contacts2P-28P
-
Mounting TypePanel Mount
-
Brand NameSCED
-
CertificationCE, ISO9001
-

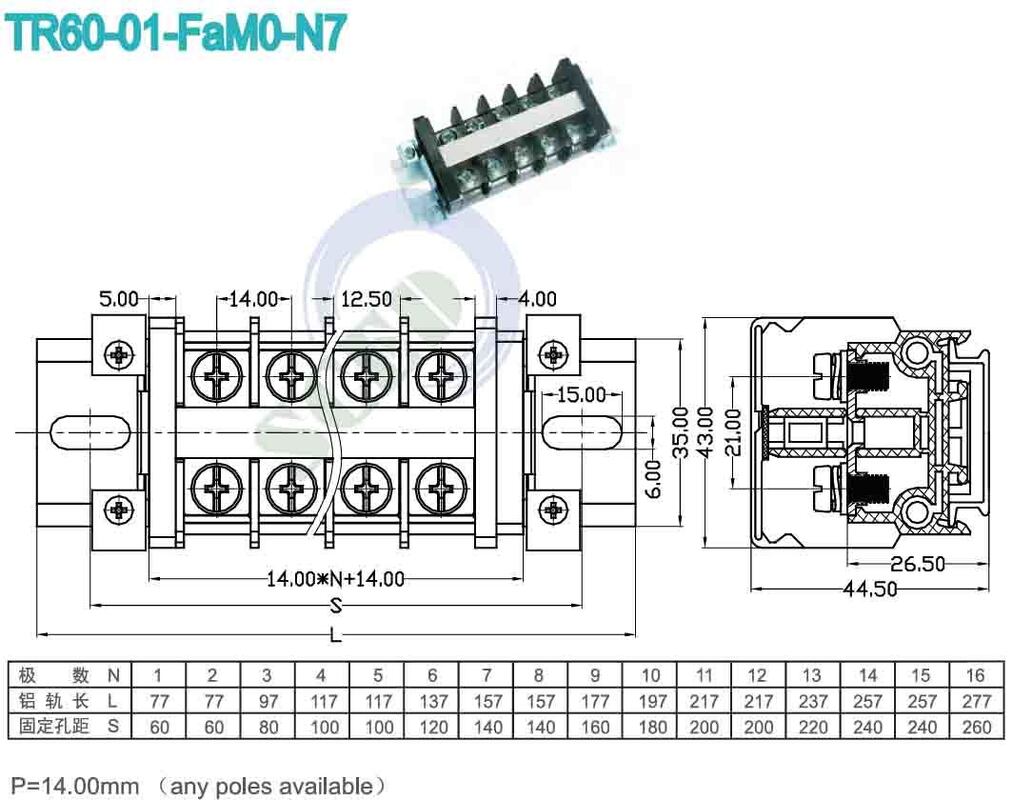

Model NumberTR-60-01-N7
-
Minimum Order Quantity100
-
PriceNA
-
Packaging DetailsCarton Box
-
Delivery Time30 Day(s)
-
Payment TermsT/T,AliPay,PayPal
-
Supply Ability100000pcs/day
High Current Terminal Block with 175A Rated Current UL94 V-0 Flammability for Industrial Power Distribution
High Current Terminal Connector Din Rail Terminal Block
The High Current Terminal Block is a robust and reliable solution designed specifically for industrial power distribution applications. Engineered to handle high electrical loads, this terminal block ensures safe and consistent performance in demanding electrical systems with a current rating of 200A and rated current of 175A.
Key Features
- Product Name: High Current Terminal Block
- Type: High Current Terminal Connector
- Weight: 35g
- Number of Contacts: 2P-28P
- Wire Range: 300-750kcmil
- Rated Current: 175A
- Cable Lug Terminal design for secure connections
- Front Terminal Battery compatibility for easy access
- Functions as a Feedthrough Terminal Block for efficient wiring
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current | 175A |
| Current Rating | 200A |
| Housing Material | Polyamide |
| Mounting Type | Panel Mount |
| Flammability Rating | UL94 V-0 |
| Standards Compliance | UL 1059, IEC 60947-7-1 |
| Operating Temperature | -40°C to 105°C |
| Application | Industrial Power Distribution |
Applications
The SCED High Current Terminal Block is essential for robust industrial power distribution systems. Certified with CE, ISO9001, and RoHS approvals, it's ideal for electric chain block hoist systems, control panels, switchgear assemblies, and power distribution units across manufacturing, automation, and energy industries.
Customization Options
SCED offers customized High Current Terminal Block solutions with screw clamp connection type, rated for 175A current with maximum rating of 200A. Ideal for Din Rail Terminal Block systems, Chain Block Hoist controls, and Front Terminal Battery connections.
Frequently Asked Questions
What is the brand name of the High Current Terminal Block?
The brand name is SCED.
Where is the High Current Terminal Block manufactured?
Manufactured in Suzhou.
What certifications does the product have?
Certified with CE and ISO9001 standards.
What is the minimum order quantity?
Minimum order quantity is 100 pieces.
What payment terms are accepted?
T/T, AliPay, and PayPal.
What is the delivery time?
Approximately 30 days.
