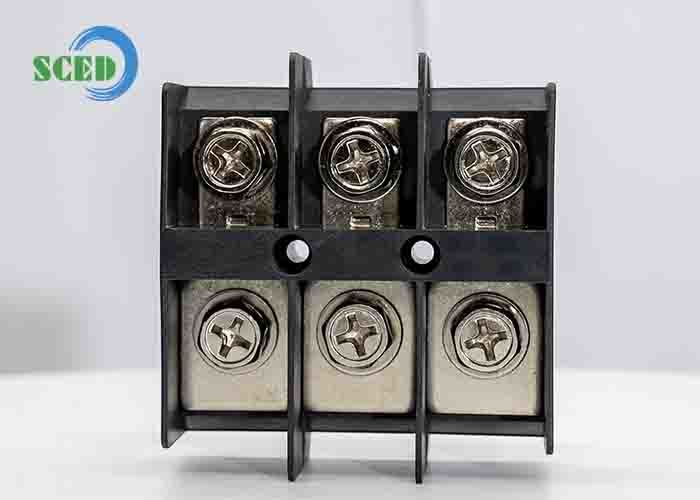

Polyamide Housing High Current Terminal Block with 200A Current Rating and Screw Clamp Connection for Power Distribution
-
Highlight
Polyamide high current terminal block
,200A screw clamp terminal block
,Power distribution terminal block
-
ApprovalsCE, RoHS
-
Operating Temperature-40°C To 105°C
-
TypeHigh Current Terminal Connector
-
Rated Current175A
-
ConnectiontypeScrew Clamp
-
Flammability RatingUL94 V-0
-
Wire Range300-750kcmil
-
Currentrating200A
-
Brand NameSCED
-
CertificationCE, ISO9001
-

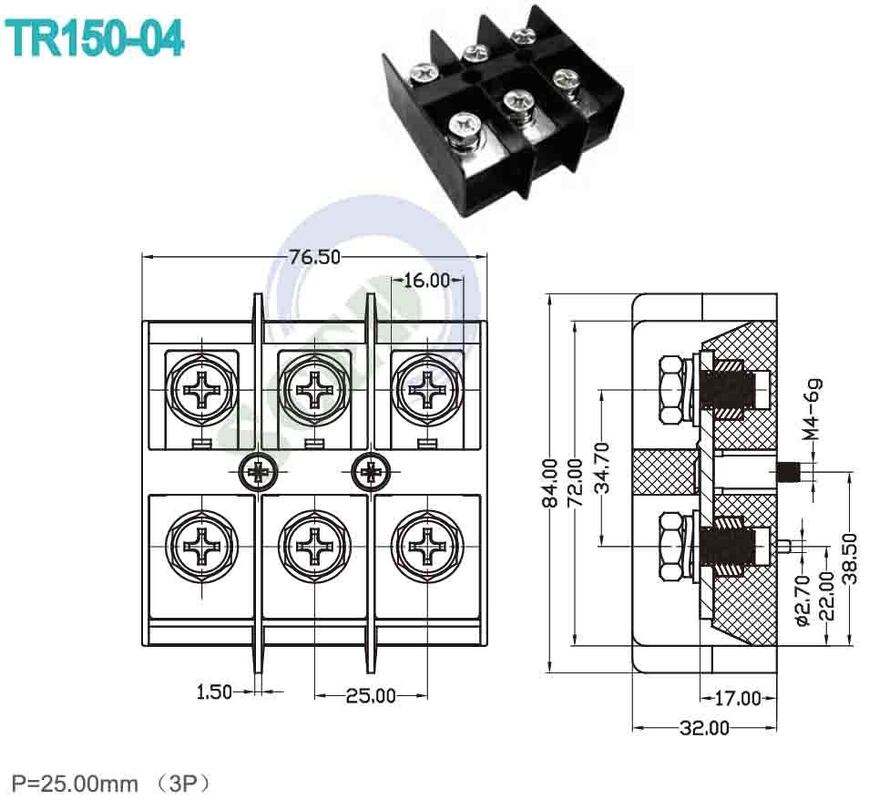

Model NumberTR150-04
-
Minimum Order Quantity100
-
PriceNA
-
Packaging DetailsCarton Box
-
Delivery Time30 Day(s)
-
Payment TermsT/T,AliPay,PayPal
-
Supply Ability100000pcs/day
Polyamide Housing High Current Terminal Block with 200A Current Rating and Screw Clamp Connection for Power Distribution
Polyamide Housing High Current Terminal Block
Screw clamp connection type with 200A current rating, ideal for power distribution panels and industrial applications.
Product Overview
This High Current Terminal Block is engineered for demanding industrial applications including Block Brick Machines and High Current Battery systems. With a rated current capacity of 175A and operating temperature range of -40°C to 105°C, it ensures reliable electrical connections in harsh environments.
The durable polyamide housing provides excellent mechanical strength, chemical resistance, and superior insulation properties. Weighing just 35 grams with a panel mount design, it offers a compact, lightweight solution for efficient space utilization in control panels and electrical assemblies.
Key Features
- Product Name: High Current Terminal Block
- Approvals: CE, RoHS certified
- Housing Material: Durable Polyamide
- Standards Compliance: UL 1059 and IEC 60947-7-1
- Weight: Lightweight design at 35g
- Flammability Rating: UL94 V-0 for enhanced safety
- Compatible with Din Rail Terminal Block mounting systems
- Features Front Terminal Battery connection for easy access
- Includes Cable Lug Terminal for secure wiring connections
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Current | 175A |
| Type | High Current Terminal Connector |
| Operating Temperature | -40°C to 105°C |
| Current Rating | 200A |
| Housing Material | Polyamide |
| Standards Compliance | UL 1059, IEC 60947-7-1 |
| Approvals | CE, RoHS |
| Wire Range | 300-750kcmil |
| Weight | 35g |
| Mounting Type | Panel Mount |
Applications
Ideal for Chain Block Hoist systems, High Power Resistors, Block Brick Machines, and High Current Battery applications. The terminal block ensures secure, stable electrical connections in industrial and commercial environments requiring reliable power distribution.
Customization Options
SCED offers customized High Current Terminal Block solutions with rated current up to 175A, operating temperature range of -40°C to 105°C. Minimum order quantity of 100 pieces with supply capacity of 100,000 pieces per day.
Support & Services
Comprehensive technical support including product selection, installation guidance, troubleshooting, and maintenance recommendations. Detailed documentation provided with warranty coverage for repairs and replacements.
Packaging & Shipping
Each unit securely packaged in anti-static plastic with foam inserts, placed in sturdy corrugated cardboard boxes. Bulk orders in reinforced cartons with clear labeling. Multiple shipping options available with tracking and insurance.
Frequently Asked Questions
What brand manufactures the High Current Terminal Block?
Manufactured by SCED brand in Suzhou.
What certifications does the product have?
Certified with CE and ISO9001.
What is the minimum order quantity?
Minimum order quantity is 100 pieces.
What are the payment terms?
Accepted methods: T/T, AliPay, and PayPal.
What is the delivery time?
Typical delivery time is 30 days.
