14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

    • 14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
    • 14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
    • 14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
    • 14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
  • 14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE, CQC
    Model Number: TR60-05

    Payment & Shipping Terms:

    Minimum Order Quantity: 200
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Pitch: 20.00mm Poles: 4P
    Voltage: 600V Current: 65A
    Housing Material: PA66 Conduction Board: Cooper/Nickel Plated
    Color: Black Item: Feed Through Terminal Connector, High Current Terminal, Panel Mount Terminal Block

    14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector





    Data spec.



    UL Technical Data B C D
    Rated Voltage / Current V/A 600/65 600/65
    Wire Range AWG 3-20 3-20
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 800 / 76 1000 / 76 1000 / 76
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 25
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Conduction Board Plating Cooper/Nickel Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    Stripping Length mm 14-16
    Screw / Torque / lbf.in M 5 / 14 - 18

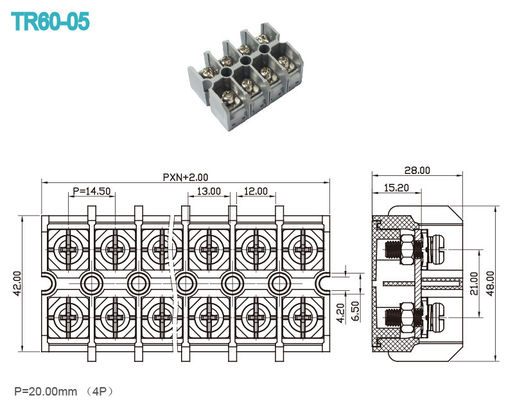

    Drawing Specifications:







    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



    How to order:





    14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector



    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    Drawing Photo

    14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

    Factory Photo:



    14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

    Certificates photo:

    14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
