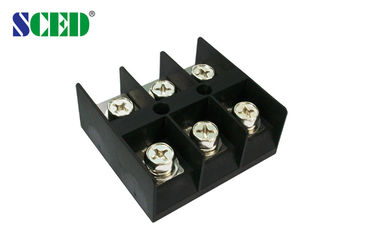

3 Way Screw Terminal 600V High Current Terminal Connector 150A 25.00mm

3 Way Screw Terminal 600V High Current Terminal Connector 150A 25.00mm

  • 3 Way Screw Terminal 600V High Current Terminal Connector 150A 25.00mm
  • 3 Way Screw Terminal 600V High Current Terminal Connector 150A 25.00mm
3 Way Screw Terminal 600V High Current Terminal Connector 150A 25.00mm
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE, CQC
Model Number: TR150-04
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Pitch: 25.00mm Poles: 3 Poles
Voltage: 600V Current: 150A
Material: PC Color: Black
High Light:

wiring terminal blocks

,

power terminal block

3 Way Screw Terminal 600V High Current Terminal Connector 150A 25.00mm







Parameter excel data

UL Technical Data B C D
Rated Voltage / Current       V/A 600 / 150 600 / 150
Wire Range                         AWG 1/0-20 1/0-20
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current        V/A 800 /150 1000 / 150 1000 / 150
Rated Surge Voltage            KV 8 8 8
Rated Connecting Capacity mm2 60
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Nickel Plated
Other Data
Stripping Length                    mm 18-19
Screw Torque                      mm M8 / 30-32



Drawing Specifications:



3 Way Screw Terminal 600V High Current Terminal Connector 150A 25.00mm 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



3 Way Screw Terminal 600V High Current Terminal Connector 150A 25.00mm 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

3 Way Screw Terminal 600V High Current Terminal Connector 150A 25.00mm 2
