27.0mm Panel Mount High Current Terminal Block High Voltage

27.0mm Panel Mount High Current Terminal Block High Voltage

Products - High Current Terminal Block
  • Highlight

    wiring terminal blocks

    ,

    power terminal block

  • Pitch
    27.00mm
  • Rated Voltage
    600V
  • Rated Current
    150A
  • Material
    PC
  • Item
    High Current Terminal Block, Panel Mount Terminal Block
  • Conduction Board
    Brass Material
  • Wire Range
    2/0-20 AWG
  • Poles
    Any Poles Available
  • Color
    Black
  • Application
    PCB, Frequency Converters, Server Site, Etc.
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TR150-02-BCM0
  • Minimum Order Quantity
    200PCS
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

27.0mm Panel Mount High Current Terminal Block High Voltage

  • 27.0mm Panel Mount High Current Terminal Block High Voltage
  • 27.0mm Panel Mount High Current Terminal Block High Voltage
  • 27.0mm Panel Mount High Current Terminal Block High Voltage
Get Price Contact Now

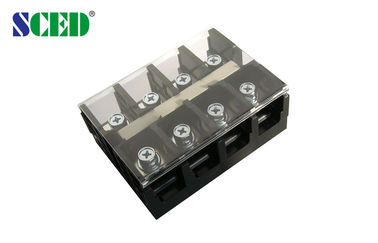

27.0mm Panel Mount High Current Terminal Block High Voltage



600V 150A, Black color, with cover,  2/0-20 AWG

Any poles available, PC material



Key words: High current terminal block, panel mount terminal block, PCB Screw terminal block



Parameter:



UL Technical Data B C D
Rated Voltage / Current V/A 600 / 150 600 / 150
Wire Range AWG 2/0-20 2/0-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /150 1000 / 150 1000 / 150
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 60
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 12-14
Screw Torque mm M8 / 31-40



Drawing Photos:

27.0mm Panel Mount High Current Terminal Block High Voltage 0

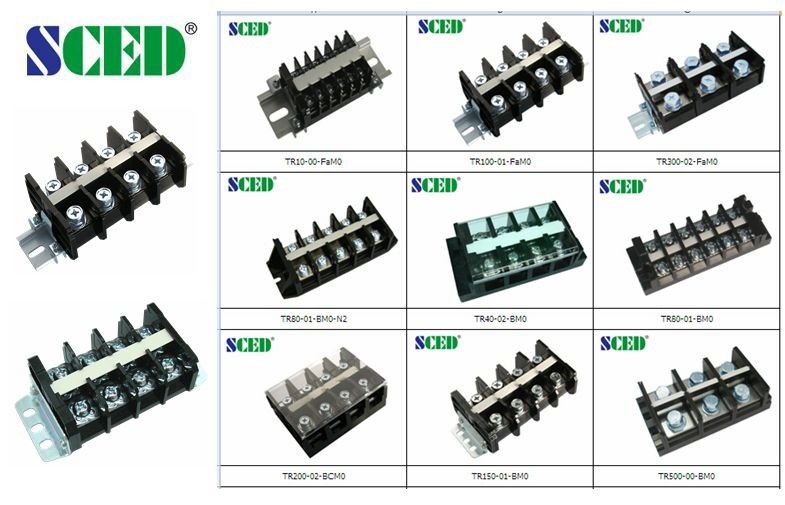

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



27.0mm Panel Mount High Current Terminal Block High Voltage 1



Applications:



PCB, Frequency Converters, Server Site,



Switch, Power Supply, Electric Lighting, Industry Control, Automation,



Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Company Photos



27.0mm Panel Mount High Current Terminal Block High Voltage 2
