3.81mm PCB Screw Terminal Block Cage Clamp Euro Electrical Terminal Block 300v

3.81mm PCB Screw Terminal Block Cage Clamp Euro Electrical Terminal Block 300v

  • 3.81mm PCB Screw Terminal Block Cage Clamp Euro Electrical Terminal Block 300v
  • 3.81mm PCB Screw Terminal Block Cage Clamp Euro Electrical Terminal Block 300v
3.81mm PCB Screw Terminal Block Cage Clamp Euro Electrical Terminal Block 300v
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ381-01
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard export packing carton
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: PCB Pitch: 3.81mm
Nom.Voltage: 300V Nom.Current: 10A
Wire Range: 16-24 A .W.G Insulation Material: PA66
Poles: 2P 3P Any Poles Key Words: PCB Screw Terminal Block
High Light:

pcb screw terminal blocks

,

pcb mount terminal block



3.81mm PCB Screw Terminal Block Cage Clamp Euro Electrical Terminal Block 300v





Parameter:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10





Wire Range                                AWG

16-24





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                V/A

160 / 10

200 / 10

400 / 10

Rated Surge Voltage                     KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                mm

φ1.3

Stripping Length                    mm

4-5

Screw / Torque                    / lbf.in

M2 / 1.8-2.0





Competitive Advantage:



Stable good quality

Competitive price

Quickly response

Full range products for selection

Flexible to design the exact part per customers’ demand



Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Drawing Specifications



TJ381-01

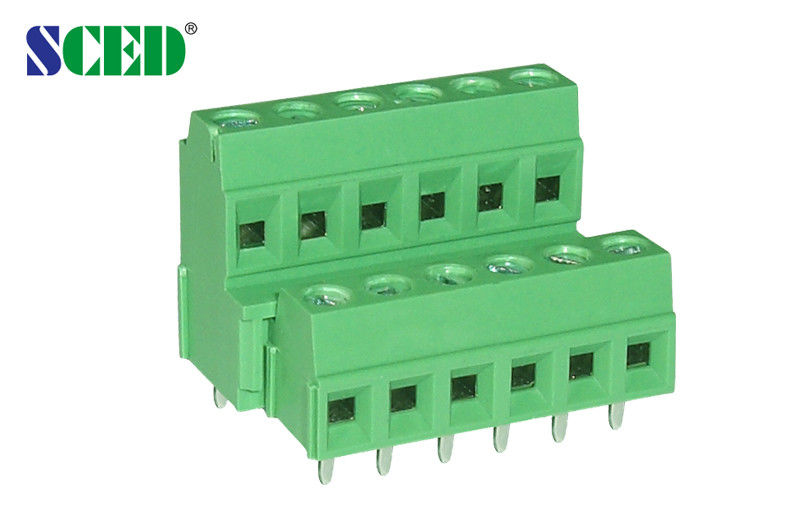

Detail Photos

3.81mm PCB Screw Terminal Block Cage Clamp Euro Electrical Terminal Block 300v 1
