| Place of Origin: | Guangdong,China |
| Brand Name: | SCED |
| Certification: | CE,UL,CUL,CQC,VDE etc. |
| Model Number: | TJ508-15 |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 0.047-0.094 per pole |
| Packaging Details: | Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198 |
| Delivery Time: | 5-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Pitch: | 6.2mm | Poles: | 3 Poles |
|---|---|---|---|
| Current: | 15A | Volt: | 300V |
| Clamp Cage: | Brass | Plastic: | PA66 |
| Plating: | Nickel Plated | Stripping Length: | 7-8 |
| Color: | Black | Inflammability Class: | UL94-V0 |
| High Light: | pcb screw terminal blocks,pcb terminal block connectors |
||

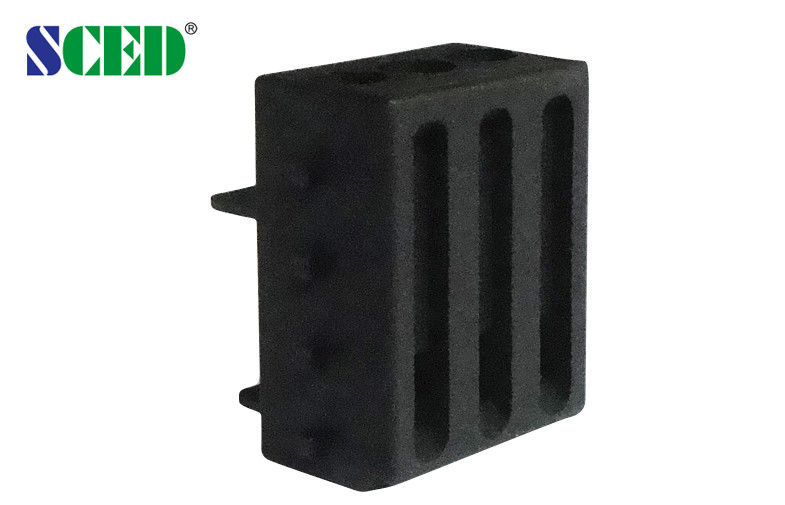

Pitch 6.2mm PCB Terminal Block Brass 300V 15A 3 Poles PA66 UL94-V0
Detailed product Description:
Pitch 6.20mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 15 |
|
|
|
Wire Range AWG |
10-24 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 15 |
800 / 15 |
1000 / 15 |
|
Rated Surge Voltage KV |
6 |
6 |
8 |
|
Rated Connecting Capacity mm2 |
4 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.4 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
||
