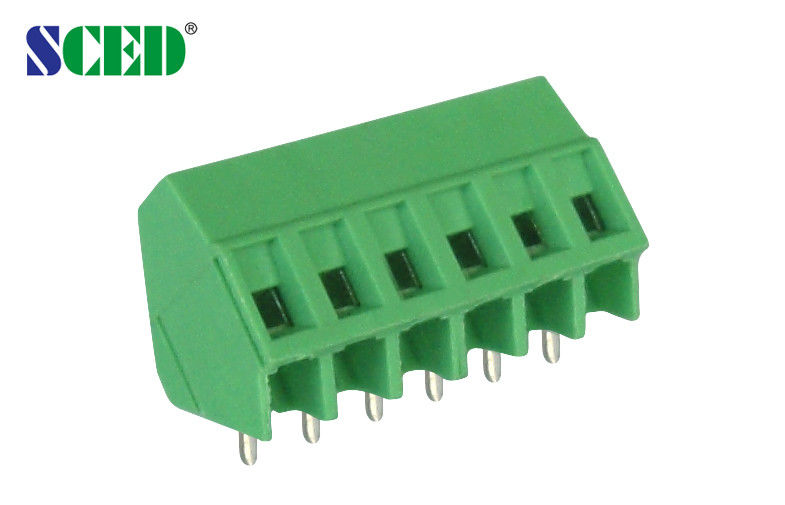

Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V

Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V

Products - PCB Terminal Block
  • Highlight

    pcb terminal block connectors

    ,

    pcb mount terminal block

  • Color
    Green
  • Pitch
    5.08mm
  • Material
    Brass
  • Plating
    Nickel Plated
  • Poles
    Any Poles Available
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Volt
    300 V
  • Current
    10 A
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Contact Resistance
    Less Than 8mΩ
  • Place of Origin
    Guangdong, China
  • Brand Name
    SCED
  • Certification
    UL,CE,CUL,VDE,CQC etc.
  • Model Number
    TJ508-03
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.02-0.15 per pole
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V

  • Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V
  • Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V
  • Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V
  • Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V
Get Price Contact Now

Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V



Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

□Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



Applications:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting

2.Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

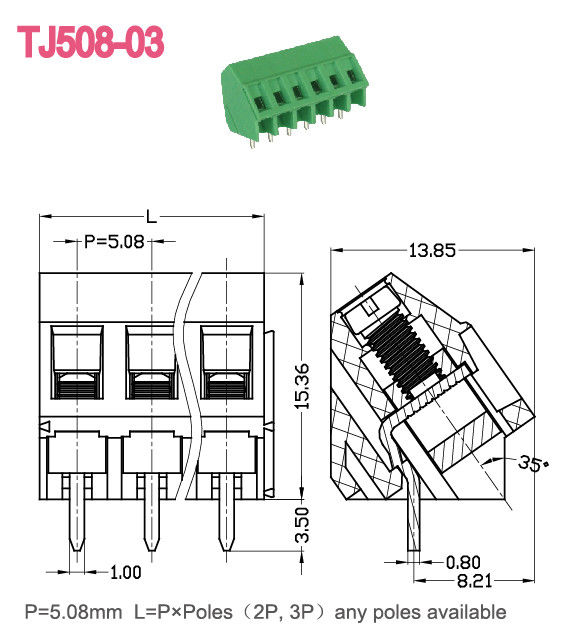

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10



300 / 10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

320 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.4

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
