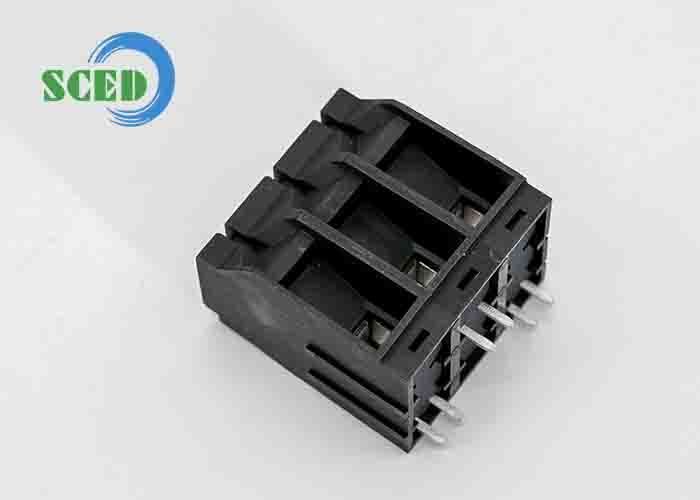

5.08mm Pitch PCB Terminal Block for Heavy Duty and High Temperature Applications

5.08mm Pitch PCB Terminal Block for Heavy Duty and High Temperature Applications

  • Color
    White/Black/Grey
  • Operating Temperature
    -40℃ To +105℃
  • Insulation Resistance
    1000MΩ/min
  • Withstand Voltage
    AC2000V/min
  • Current Rating
    2A/5A/10A/15A/20A/25A/30A
  • Mounting Type
    Through Hole/Surface Mount
  • Material
    Plastic/Metal
  • Product Name
    PCB Terminal Block
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    CE, ISO9001
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Carton box
  • Delivery Time
    50 day(s)
  • Payment Terms
    T/T, AliPay, PayPal
  • Supply Ability
    100000pcs/day

5.08mm Pitch PCB Terminal Block for Heavy Duty and High Temperature Applications

Product Description:

The PCB Terminal Block is a versatile electronic connector designed to provide secure and reliable connections for various applications. With a voltage rating ranging from 250V to 500V, this terminal block is suitable for a wide range of electrical setups.

One of the key features of this terminal block is its compatibility with wire gauges ranging from 22 to 14AWG, ensuring flexibility in wiring configurations while maintaining optimal conductivity.

Ensuring safety and performance, the insulation resistance of this terminal block is rated at 1000MΩ/min, providing effective protection against electrical leakage and short circuits.

Available in different pitch sizes of 3.5mm, 5.0mm, and 5.08mm, this terminal block offers versatility in design and installation options, catering to various spacing requirements in PCB layouts.

With a withstand voltage of AC2000V/min, this terminal block exhibits excellent electrical insulation properties, making it suitable for applications requiring high voltage tolerance and reliability.

Overall, the PCB Terminal Block is a reliable and efficient electronic connector that offers a combination of safety, flexibility, and performance, making it an ideal choice for a wide range of electronic projects and applications.



Features:

  • Product Name: PCB Terminal Block
  • Brand: SCED
  • Operating Temperature: -40℃ To +105℃
  • Voltage Rating: 250V/300V/400V/500V
  • Number of Rows: 1/2/3/4/5/6
  • Wire Gauge: 22-14AWG


Technical Parameters:

Parameter Options
Number of Rows 1/2/3/4/5/6
Product Name PCB Terminal Block
Current Rating 2A/5A/10A/15A/20A/25A/30A
Withstand Voltage AC2000V/min
Number of Positions 2/3/4/5/6/8/10/12/14

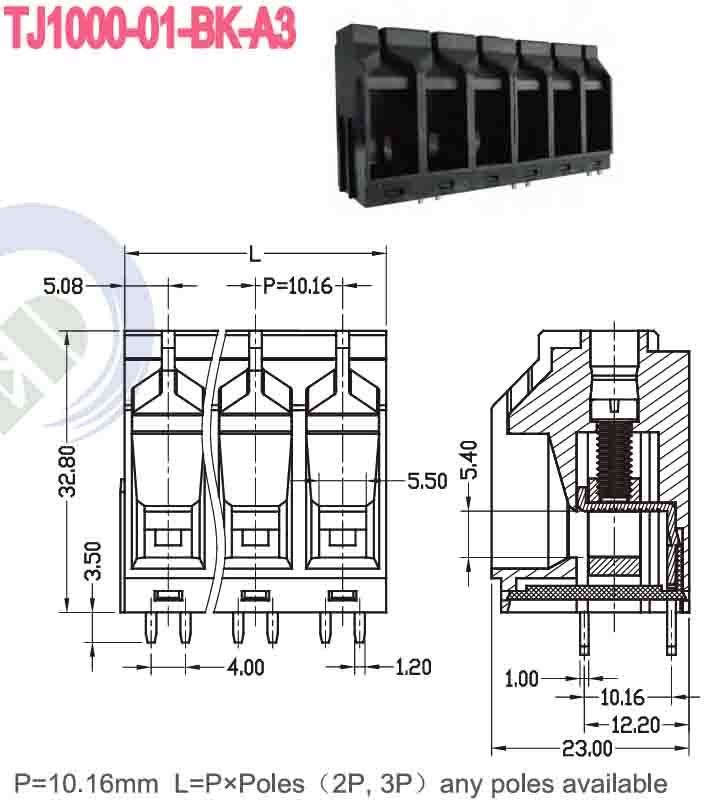

Pitch 3.5mm/5.0mm/5.08mm
Insulation Resistance 1000MΩ/min
Voltage Rating 250V/300V/400V/500V
Mounting Type Through Hole/Surface Mount
Operating Temperature -40℃ To +105℃


Applications:

The product is ideal for use in electronic equipment where secure and reliable connections are required. The terminal blocks are used to connect wires to a printed circuit board, providing a stable and secure contact for electronic components.

These terminal blocks have a minimum order quantity of 500 units and interested buyers can get the latest price information. The packaging details include carton boxes to ensure safe transportation and delivery. The delivery time for the product is 50 days, and the payment terms accepted are T/T, AliPay, and PayPal.

With a supply ability of 100,000 pieces per day, SCED PCB Terminal Blocks are available in three different colors: white, black, and grey. The insulation resistance of the terminal blocks is rated at 1000MΩ/min, ensuring safe and reliable operation.

The current rating of the terminal blocks ranges from 2A to 30A, making them suitable for a wide range of electronic devices. The operating temperature of the terminal blocks is from -40°C to +105°C, allowing them to be used in various environmental conditions.

SCED PCB Terminal Blocks are available in different configurations with a varying number of rows, including 1, 2, 3, 4, 5, and 6 rows. This makes them suitable for different types of electronic connectors and contact applications.



Customization:

Product Customization Services for the PCB Terminal Block product:

Brand Name: SCED

Place of Origin: China

Certification: CE, ISO9001

Minimum Order Quantity: 500

Price: Get latest price

Packaging Details: Carton box

Delivery Time: 50 day(s)

Payment Terms: T/T, AliPay, PayPal

Supply Ability: 100000pcs/day

Voltage Rating: 250V/300V/400V/500V

Color: White/Black/Grey

Product Name: PCB Terminal Block

Mounting Type: Through Hole/Surface Mount

Operating Temperature: -40℃ To +105℃

Keywords: contact, electronic connector



Support and Services:

Our Product Technical Support and Services for the PCB Terminal Block include:

- Expert assistance with product installation and configuration

- Troubleshooting guidance for any issues related to the PCB Terminal Block

- Product training and resources to help you make the most of your purchase

- Warranty support and product repair services, if needed



Packing and Shipping:

Product Packaging and Shipping Information:

Product Name: PCB Terminal Block

Description: High-quality terminal block for printed circuit boards.

Package Includes: 100 pieces of PCB terminal blocks

Shipping Method: Standard shipping

Shipping Time: Estimated delivery within 5-7 business days

Shipping Cost: Free shipping on orders over $50



FAQ:

Q: What is the brand name of the PCB Terminal Block?

A: The brand name of the PCB Terminal Block is SCED.

Q: Where is the PCB Terminal Block manufactured?

A: The PCB Terminal Block is manufactured in China.

Q: What certifications does the PCB Terminal Block have?

A: The PCB Terminal Block is certified with CE and ISO9001.

Q: What is the minimum order quantity for the PCB Terminal Block?

A: The minimum order quantity for the PCB Terminal Block is 500.

Q: What are the accepted payment terms for purchasing the PCB Terminal Block?

A: The accepted payment terms for purchasing the PCB Terminal Block are T/T, AliPay, and PayPal.
