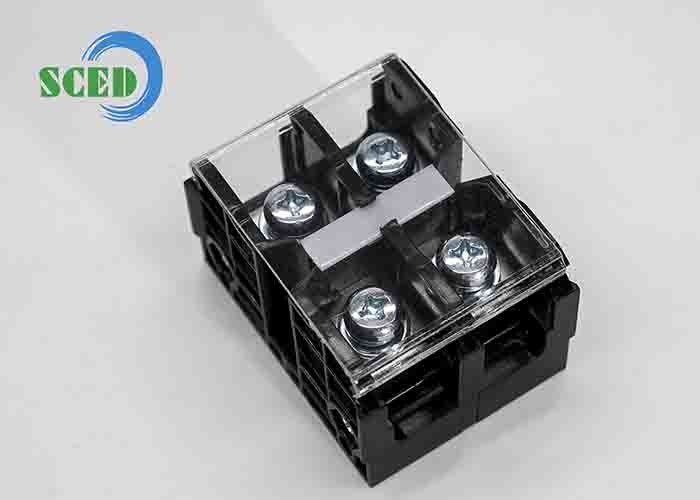

High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control

High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control

Products - High Current Terminal Block
  • Highlight

    101A High Current Terminal connector

    ,

    21.80mm High Current Terminal connector

    ,

    600V High Current Terminal connector

  • Operating Temperature
    -40°C To 105°C
  • Connection Type
    Screw
  • Current
    101A
  • Wire Range
    2-20 AWG
  • Wire Connection
    Direct
  • Mounting Type
    DIN Rail
  • Wire Stripping Length
    10-12mm
  • Inflammability Class
    UL94, V-0
  • Number Of Contacts
    Any Poles Available
  • Pitch
    21.80mm
  • Rated Voltage
    600V
  • Wire Size
    2-20 AWG
  • Rohs Compliant
    Yes
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TR100-01-BCM0-N2
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control

  • High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control
  • High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control
  • High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control
Get Price Contact Now

High Current Terminal connector 600V 101A 21.80mm any poles available used in industrial control

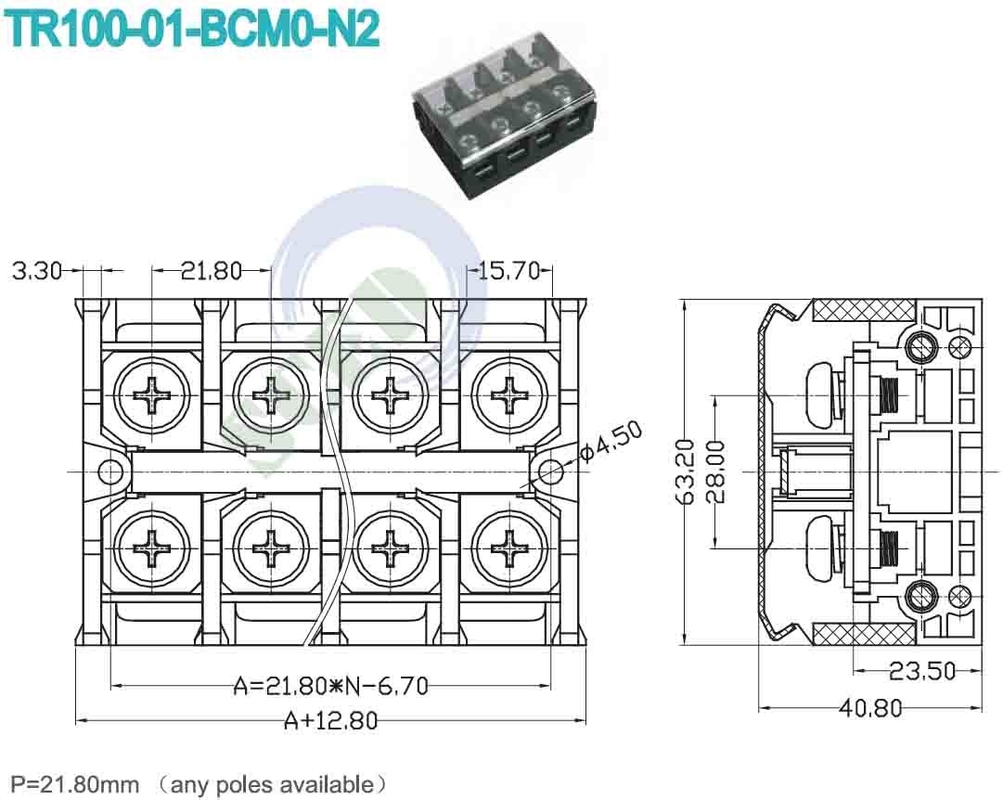

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 101 600 / 101
Wire Range AWG 2-20 2-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /100 1000 / 100 1000 / 100
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 25
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 10-12
Screw Torque mm M6 / 18-22





High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

High Current Terminal Connector 600V 101A 21.80mm Any Poles Available Used In Industrial Control 2
