600V 100A High Current Terminal Blocks 20.00mm Copper Right Angle Wire Terminals
-
Highlight
20.00mm High Current Terminal Blocks
,600V 100A High Current Terminal Blocks
,Copper Right Angle Wire Terminals
-
ApplicationsPCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
ColorBlack
-
Number Of ContactsAny Poles Available
-
Pitch20.00mm
-
Rated Current100A
-
Rated Voltage600V
-
TypeHigh Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks
-
Wire Range3-20AWG
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTR100-01-N5
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly

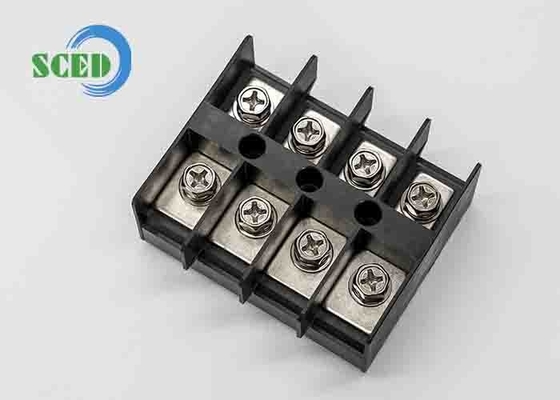

600V 100A High Current Terminal Blocks 20.00mm Copper Right Angle Wire Terminals

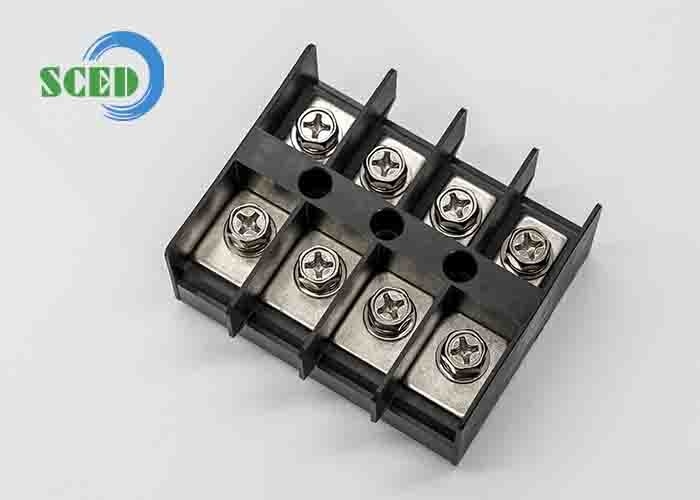

600V 100A High Current Terminal Blocks 20.00mm Copper Right Angle Wire Terminals
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

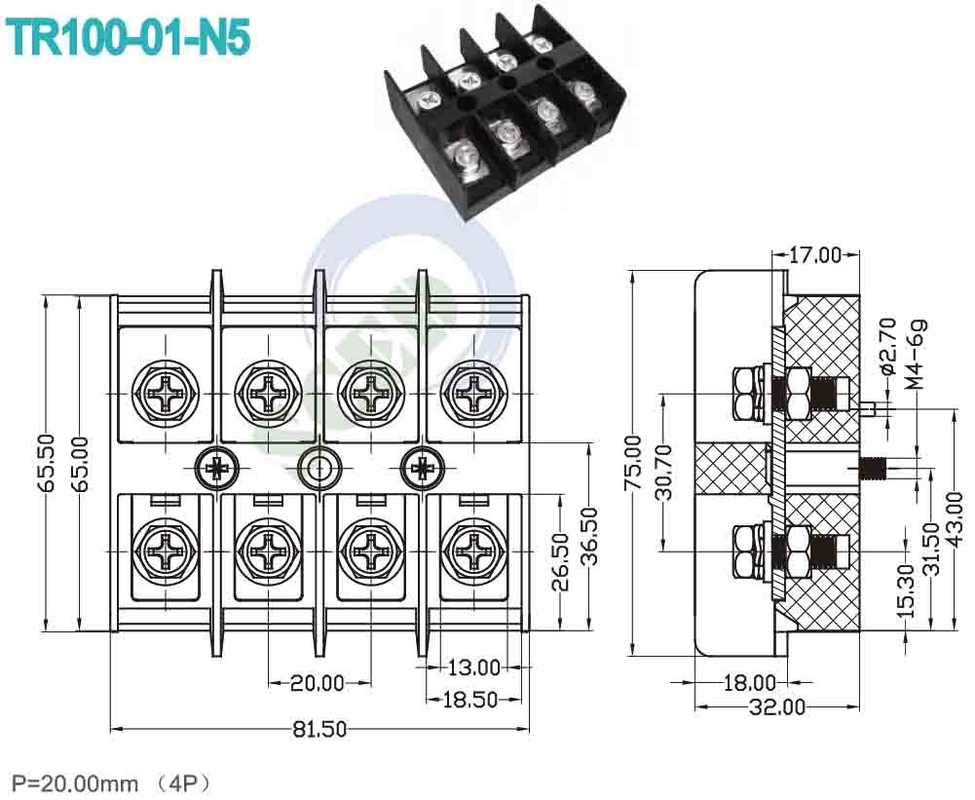

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 100 |
600 / 100 |
|
|
Wire Range AWG |
3-20 |
3-20 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 100 |
1000 / 100 |
1000 / 100 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
25 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Terminal / Plating |
Copper / Nickel Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
16-18 |
||
|
Screw / Torque / lbf.in |
M6 / 18-22 |
||
Our products are sold all over the world, you can rest assured.
