High Current Terminal Block Connector Any Poles Available Pitch 26.00mm 600V 101A

High Current Terminal Block Connector Any Poles Available Pitch 26.00mm 600V 101A

Products - High Current Terminal Block
  • Highlight

    Pitch 26.00mm High Current Terminal Block

    ,

    High Current Terminal Block Connector

    ,

    600V 101A High Current Terminal Connector

  • Number Of Contacts
    Any Poles Available
  • Wire Stripping Length
    10-12mm
  • Color
    Black
  • Connection Type
    Screw
  • Application
    Power Supply
  • Screw
    M8/Steel/Zinc Plated
  • Inflammability Class
    UL94, V-0
  • Type
    Rail Termianl Block
  • Key Words
    Screw Mount Terminal
  • Wire Size
    2-20 AWG
  • Materail
    PC
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TR100-01-FaCM0-A3
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

High Current Terminal Block Connector Any Poles Available Pitch 26.00mm 600V 101A

  • High Current Terminal Block Connector Any Poles Available Pitch 26.00mm 600V 101A
  • High Current Terminal Block Connector Any Poles Available Pitch 26.00mm 600V 101A
  • High Current Terminal Block Connector Any Poles Available Pitch 26.00mm 600V 101A
Get Price Contact Now

High Current Terminal Block Connector Any Poles Available Pitch 26.00mm 600V 101A

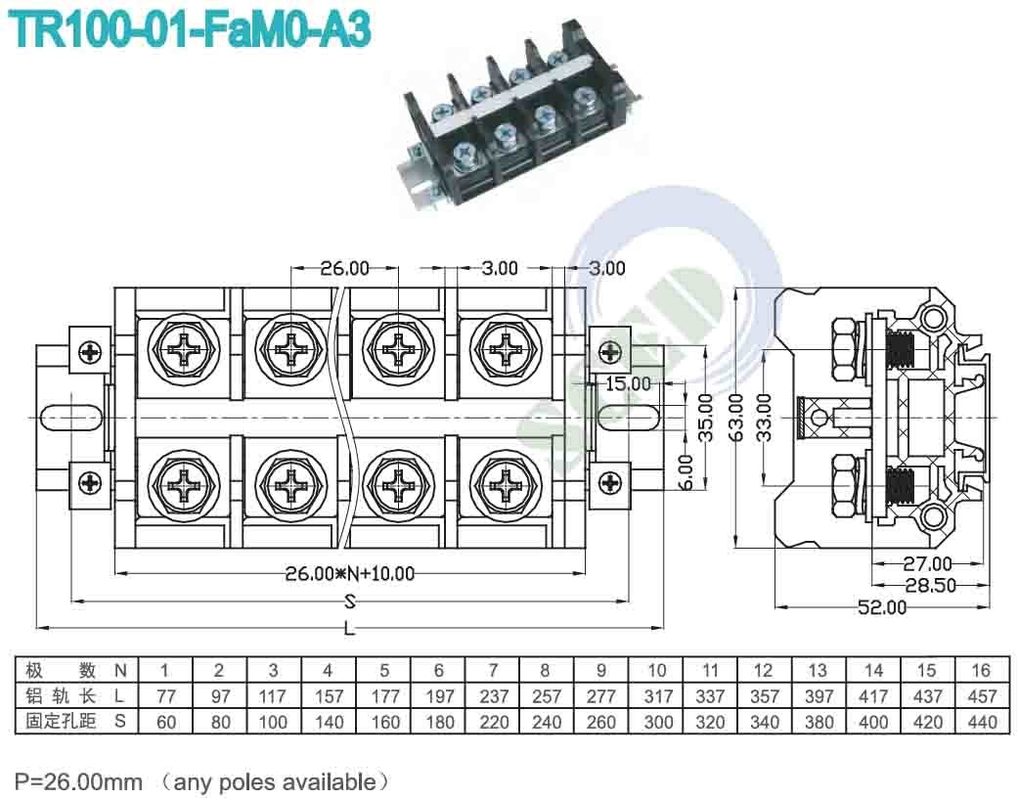

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 101 600 / 101
Wire Range AWG 2-20 2-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /100 1000 / 100 1000 / 100
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 38
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 10-12
Screw Torque mm M8 / 31-40







High Current Terminal Block Connector Any Poles Available Pitch 26.00mm 600V 101A 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





High Current Terminal Block Connector Any Poles Available Pitch 26.00mm 600V 101A 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





High Current Terminal Block Connector Any Poles Available Pitch 26.00mm 600V 101A 2
