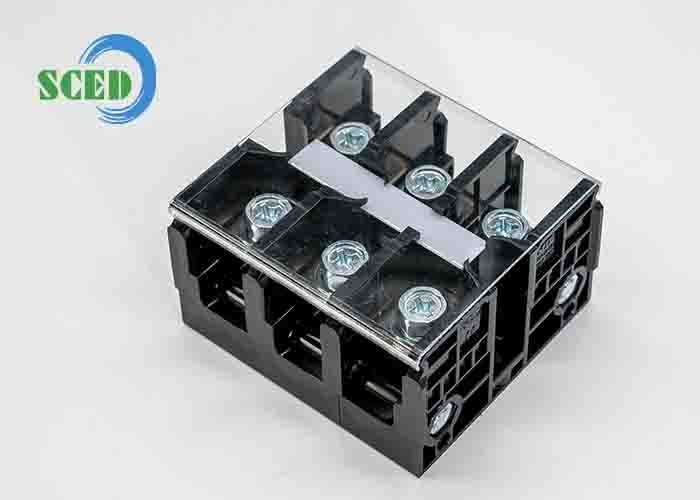

High Current Terminal Block Connector with Cover 2/0-20AWG 27.00mm 600V 200A
-
Highlight
200A High Current Terminal Block
,600V High Current Terminal Block
,27.00mm High Current Terminal Block
-
Inflammability ClassUL94, V-0
-
Available PolesAny Poles Available
-
Rated Currennt150A
-
Rated Voltage600V
-
Insulation MaterialPC
-
Wire Range2/0-20 AWG
-
ScrewM8
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE, CQC
-
Model NumberTR150-02-BCM0
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
High Current Terminal Block Connector with Cover 2/0-20AWG 27.00mm 600V 200A
High Current Terminal Block Connector with Cover 2/0-20AWG 27.00mm 600V 200A

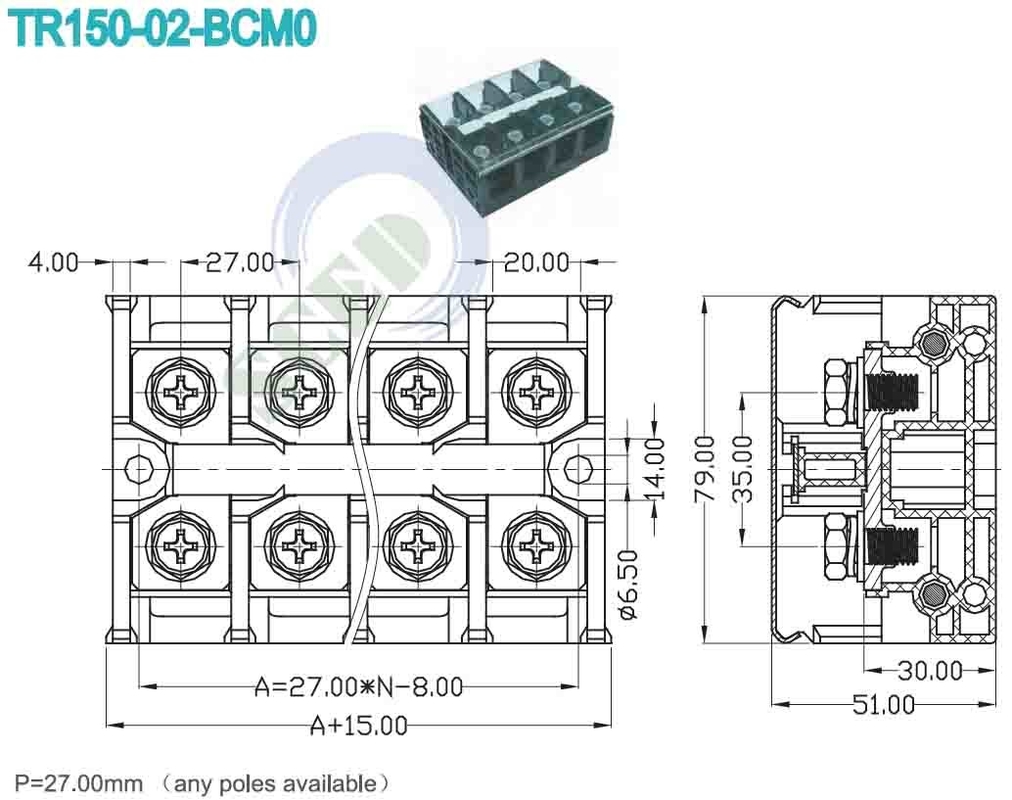

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 150 | 600 / 150 | |
| Wire Range AWG | 2/0-20 | 2/0-20 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 /150 | 1000 / 150 | 1000 / 150 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 60 | ||
| Material | |||
| Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
| Conduction Board/ Plating | Brass /Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 12-14 | ||
| Screw Torque mm | M8 / 31-40 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
