High Current Terminal Block Connector 28.00mm 600V 150A M8 Any Poles Available

High Current Terminal Block Connector 28.00mm 600V 150A M8 Any Poles Available

Products - High Current Terminal Block
  • Highlight

    600V High Current Terminal Block

    ,

    150A High Current Terminal Block

    ,

    M8 High Current Terminal Block

  • Approvals
    CE, RoHS
  • Pitch
    28.00mm
  • Rated Voltage
    600V
  • Current
    150A
  • Color
    Black, Other Available
  • Type
    High Current Terminal Connector
  • Operating Temperature
    -40°C To +105°C
  • Screw
    M8/Steel
  • Insulation Material
    PC
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR150-03-BM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

High Current Terminal Block Connector 28.00mm 600V 150A M8 Any Poles Available

Get Price Contact Now

High Current Terminal block connector 28.00mm 600V 150A M8 any poles available

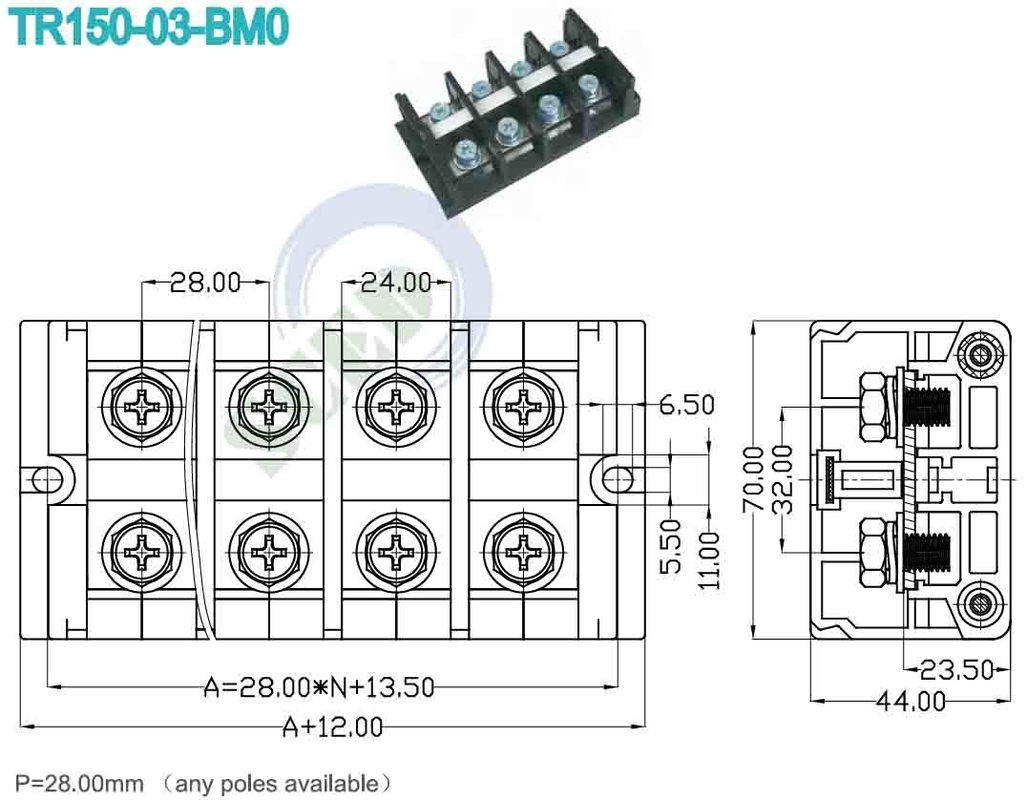

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 150 600 / 150
Wire Range AWG 2/0-20 2/0-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /150 1000 / 150 1000 / 150
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 60
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 12-14
Screw Torque mm M8 / 31-40







High Current Terminal Block Connector 28.00mm 600V 150A M8 Any Poles Available 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





High Current Terminal Block Connector 28.00mm 600V 150A M8 Any Poles Available 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

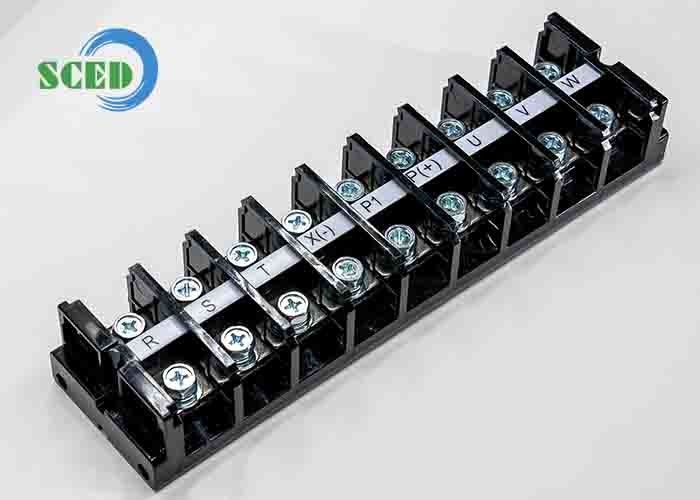

High Current Terminal Block Connector 28.00mm 600V 150A M8 Any Poles Available 2
