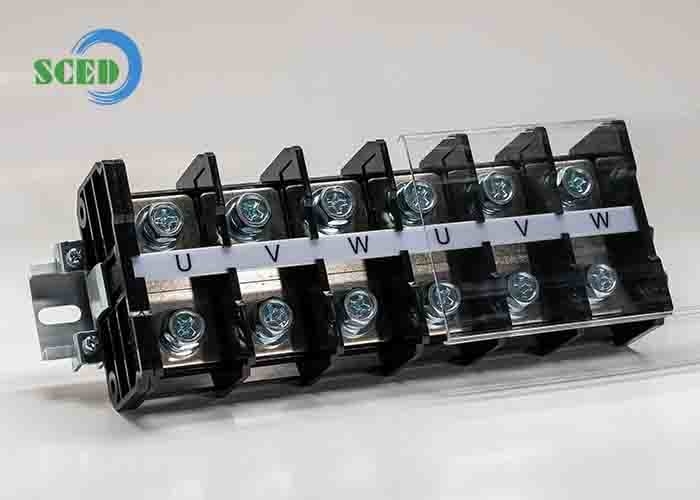

PCB Barrier Terminal Blocks 32.0mm 175A High Current Terminal Block PC M8 Right Angle
-
Highlight
PCB Barrier High Current Terminal Block
,PC High Current Terminal Block
,175A High Current Terminal Block
-
ApplicationsPCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
ColorBlack
-
Number Of ContactsAny Poles Available
-
Pitch32.00mm
-
Rated Current175A
-
Rated Voltage600V
-
TypeHigh Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks
-
Wire Range3/0-20
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTR175-01-FaCM0
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
PCB Barrier Terminal Blocks 32.0mm 175A High Current Terminal Block PC M8 Right Angle
32.0mm 175A High Current Terminal Block PC M8 Right Angle PCB Barrier Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

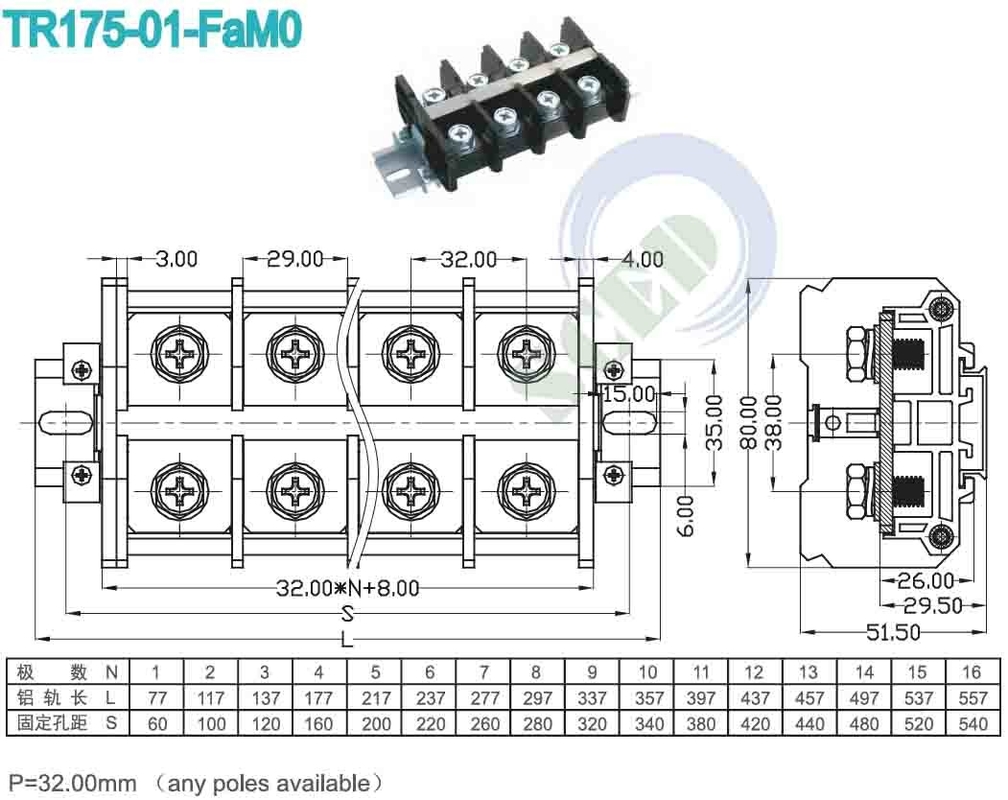

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 175 |
600 / 175 |
|
|
Wire Range AWG |
3/0-20 |
3/0-20 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 175 |
1000 / 175 |
1000 / 175 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
80 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
14-18 |
||
|
Screw / Torque / lbf.in |
M8 / 31-40 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Our products are sold all over the world, you can rest assured.
