Pitch 36.00mm PC M10 Brass Terminal Block Connectors 200A 600V PCB Terminal Blocks
-
Highlight
200A PCB Terminal Blocks
,M10 Brass Terminal Block Connectors
,600V PCB Terminal Blocks
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
ColorBlack
-
Number Of ContactsAny Poles Available
-
Pitch36.00mm
-
Rated Current200A
-
Rated Voltage600V
-
TypeHigh Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks
-
Wire Range4/0-20
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTR200-01-FaCM0-4P
-
Minimum Order Quantity300
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability500K poles each monthly

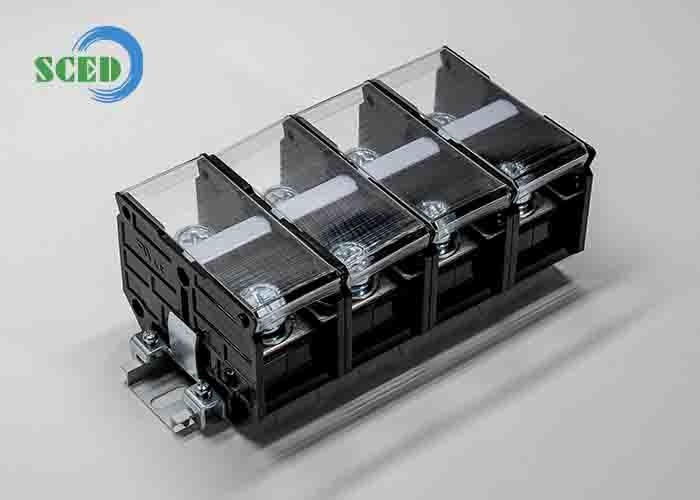

Pitch 36.00mm PC M10 Brass Terminal Block Connectors 200A 600V PCB Terminal Blocks
Pitch 36.00mm PC M10 Brass Terminal Block Connectors 200A 600V PCB Terminal Blocks

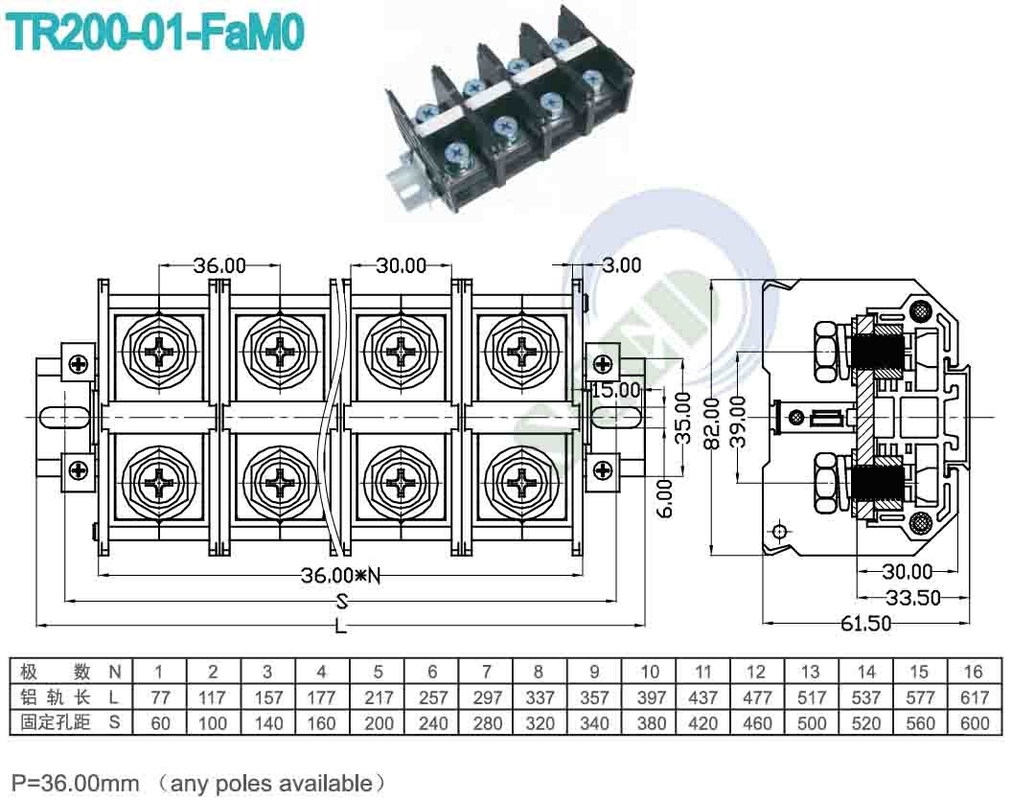

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 200 |
600 / 200 |
|
|
Wire Range AWG |
4/0-20 |
4/0-20 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 200 |
1000 / 200 |
1000 / 200 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
100 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
14-18 |
||
|
Screw / Torque / lbf.in |
M10 / 50-60 |
||
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select
the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..
Our products are sold all over the world, you can rest assured.
