Pitch 5.00mm 300v PCB Terminal Block 10A 2P-24P Right Angle Wire Inlet 12-26 AWG

Pitch 5.00mm 300v PCB Terminal Block 10A 2P-24P Right Angle Wire Inlet 12-26 AWG

Products - PCB Terminal Block
  • Highlight

    10A PCB Terminal Block

    ,

    12-26 AWG PCB Terminal Block

    ,

    300v PCB Terminal Block

  • Level
    Single Levels
  • Pitch
    5.00mm
  • Color
    Green
  • Current
    10A
  • Voltage
    300V
  • Screw
    Steel
  • Plastic
    PA66
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Inflammability Class
    UL94, V-0
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE etc.
  • Model Number
    TJ500-00-14P-GN11-A3-D11-T1-M6
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.054-0.108 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    20-45 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

Pitch 5.00mm 300v PCB Terminal Block 10A 2P-24P Right Angle Wire Inlet 12-26 AWG

  • Pitch 5.00mm 300v PCB Terminal Block 10A 2P-24P Right Angle Wire Inlet 12-26 AWG
  • Pitch 5.00mm 300v PCB Terminal Block 10A 2P-24P Right Angle Wire Inlet 12-26 AWG
  • Pitch 5.00mm 300v PCB Terminal Block 10A 2P-24P Right Angle Wire Inlet 12-26 AWG
Get Price Contact Now



Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v 10A 2P - 28P



Detailed product Description:



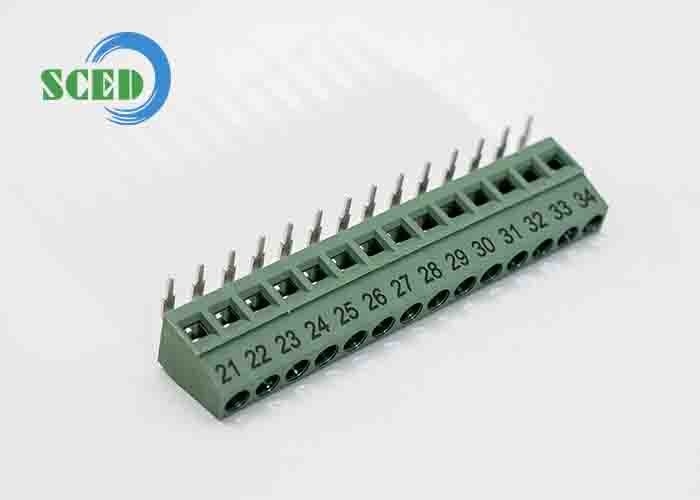

Pitch 5.00mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series



■ Right angle wire inlet

■ Single decks

Standard color: Green.

Other colors also available.



Applications:



1. PCB, Frequency Converters, Server Site, Switch, Power Supply

2. Electric Lighting, Industry Control, Automation, Rail Transportation

3. Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



How to order:

Pitch 5.00mm 300v PCB Terminal Block 10A 2P-24P Right Angle Wire Inlet 12-26 AWG 0



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10



300 / 10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.4

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:



1. 10 main series and more than 1000 models for selection

2. Stable good quality

3. Flexible to design the exact part per customers' demand

4. Resonable price

5. Good servide.

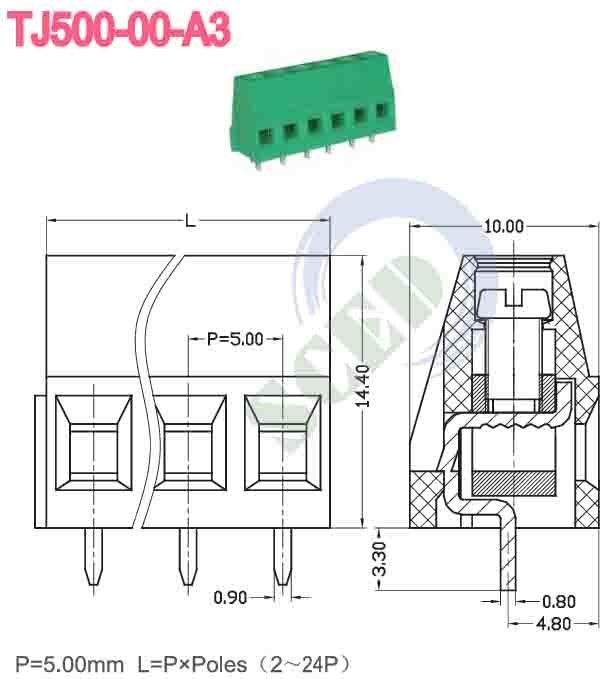

Drawing Photo
