300V 10A M3 Screw 12-26 AWG Terminal Block Connector PA66 Insulation Material Green 5.08mm Spacing

300V 10A M3 Screw 12-26 AWG Terminal Block Connector PA66 Insulation Material Green 5.08mm Spacing

Products - PCB Terminal Block
  • Highlight

    5.08mm Spacing Terminal Block

    ,

    PA66 Insulation Material Terminal Block

    ,

    12-26 AWG Terminal Block

  • Color
    Green
  • Metal Parts
    Brass
  • Pitch
    5.08mm
  • Voltage
    300V
  • Current
    10A
  • Poles
    Any Poles Available
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Inflammability Class
    UL94, V-0
  • Insulation Material
    PA66
  • Place of Origin
    Suzhou,China
  • Brand Name
    SCED
  • Certification
    UL,CE,CUL,CQC and VDE etc.
  • Model Number
    TJ508-04-2P-A3.2-T1
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.04-0.085 PER Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

300V 10A M3 Screw 12-26 AWG Terminal Block Connector PA66 Insulation Material Green 5.08mm Spacing

  • 300V 10A M3 Screw 12-26 AWG Terminal Block Connector PA66 Insulation Material Green 5.08mm Spacing
  • 300V 10A M3 Screw 12-26 AWG Terminal Block Connector PA66 Insulation Material Green 5.08mm Spacing
  • 300V 10A M3 Screw 12-26 AWG Terminal Block Connector PA66 Insulation Material Green 5.08mm Spacing
Get Price Contact Now



Brass 5.08mm Spacing PA66 300V 10A M3 Screw 12-26 AWG Terminal Block Connector



Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P or 3P ro any poles available, PCB Terminal blocks – Euro type Raising series

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Green. Other colors also available.



Applications:



It can be used in PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military etc..



How to order:

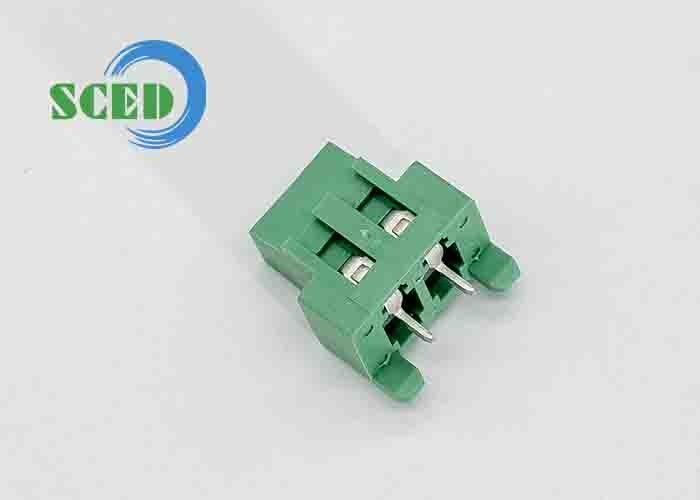

300V 10A M3 Screw 12-26 AWG Terminal Block Connector PA66 Insulation Material Green 5.08mm Spacing 0



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10   300/10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response and good after-sales service
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

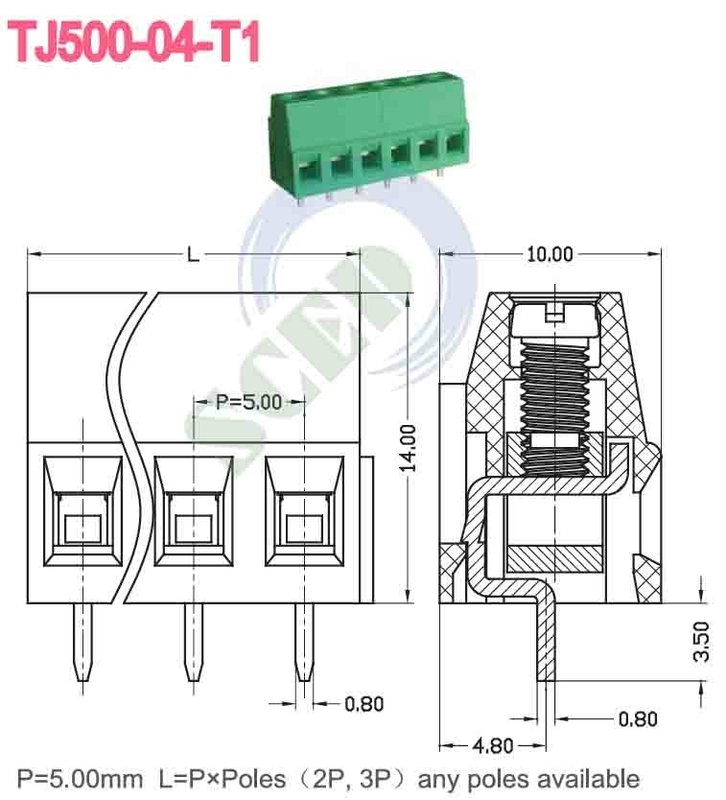

Drawing Photo


300V 10A M3 Screw 12-26 AWG Terminal Block Connector PA66 Insulation Material Green 5.08mm Spacing 1
