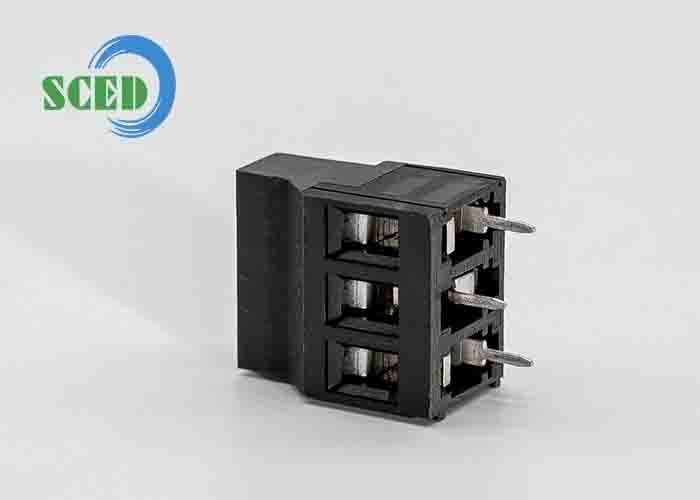

Brass PA66 PCB Terminal Block 5.08mm 300V 10A for Frequency Conversion

Brass PA66 PCB Terminal Block 5.08mm 300V 10A for Frequency Conversion

Products - PCB Terminal Block
  • Highlight

    300V PCB Terminal Block

    ,

    10A PCB Terminal Block

    ,

    5.08mm PCB Terminal Block

  • Color
    Black
  • Pitch
    5.08mm
  • Plastic
    PA66
  • Volt
    300V
  • Current
    10A
  • Poles
    Any Poles Available
  • Inflammability Class
    UL94-V0
  • Terminal
    Brass
  • Plating
    Nickel Plated
  • Stripping Length
    7-8mm
  • Place of Origin
    Suzhou China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE etc.
  • Model Number
    TJ508-18-3P-BK-D9
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.061-0.122
  • Packaging Details
    Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Brass PA66 PCB Terminal Block 5.08mm 300V 10A for Frequency Conversion

  • Brass PA66 PCB Terminal Block 5.08mm 300V 10A for Frequency Conversion
  • Brass PA66 PCB Terminal Block 5.08mm 300V 10A for Frequency Conversion
  • Brass PA66 PCB Terminal Block 5.08mm 300V 10A for Frequency Conversion
Get Price Contact Now

PCB Terminal Block Block 5.08mm 300V 10A Brass PA66 For Frequency Conversion​



Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P or 3P or Any poles available, PCB Terminal blocks – Euro type Raising series

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Deck;  ■Double decks;  □Triple decks

Standard color: Green. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



How to order:

Brass PA66 PCB Terminal Block 5.08mm 300V 10A for Frequency Conversion 0



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

12-24



12-24

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

400 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ1.3

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

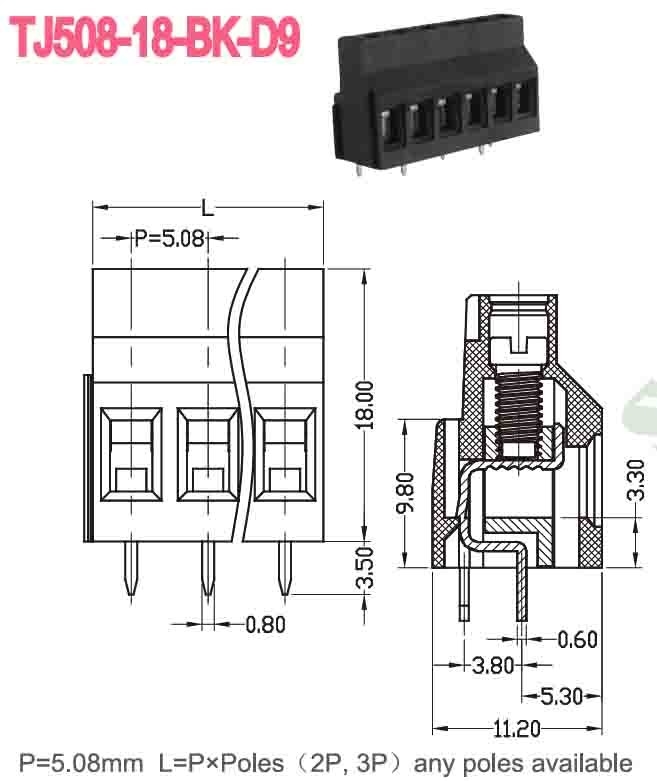

Drawing Photo


Brass PA66 PCB Terminal Block 5.08mm 300V 10A for Frequency Conversion 1
