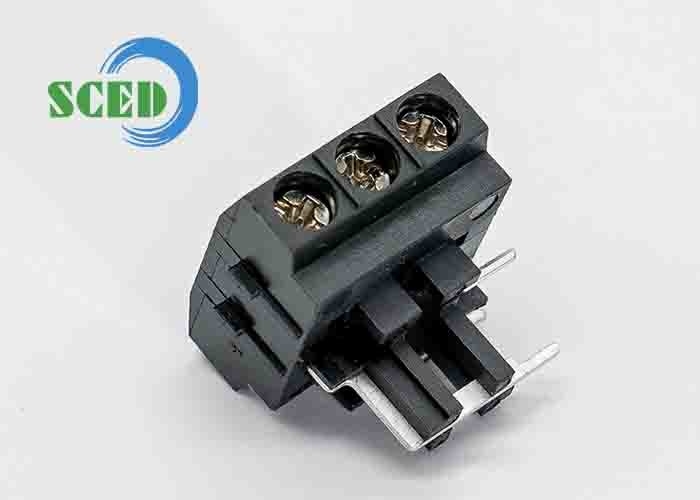

300V 10A M3 Screw Terminal Block Connector 12 24 AWG PBT 6.2mm Spacing Brass

300V 10A M3 Screw Terminal Block Connector 12 24 AWG PBT 6.2mm Spacing Brass

Products - PCB Terminal Block
  • Highlight

    10A Screw Terminal Block Connector

    ,

    6.2mm Spacing Screw Terminal Block Connector

    ,

    300V Screw Terminal Block Connector

  • Color
    Black
  • Metal Parts
    Brass
  • Pitch
    6.2mm
  • Voltage
    300V
  • Current
    10A
  • Poles
    3 Poles
  • Wire Inlet
    Right Angle
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Inflammability Class
    UL94, V-0
  • Insulation Material
    PBT
  • Place of Origin
    Suzhou,China
  • Brand Name
    SCED
  • Certification
    UL,CE,CUL,CQC and VDE etc.
  • Model Number
    TJ508-23-3P-BK-D10
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.04-0.085 PER Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

300V 10A M3 Screw Terminal Block Connector 12 24 AWG PBT 6.2mm Spacing Brass

  • 300V 10A M3 Screw Terminal Block Connector 12 24 AWG PBT 6.2mm Spacing Brass
  • 300V 10A M3 Screw Terminal Block Connector 12 24 AWG PBT 6.2mm Spacing Brass
  • 300V 10A M3 Screw Terminal Block Connector 12 24 AWG PBT 6.2mm Spacing Brass
Get Price Contact Now



PBT 6.2mm Spacing Brass 300V 10A M3 Screw Terminal Block Connector 12 - 24 AWG



Detailed product Description:



Pitch 6.2mm, 300V 10A, 3P, PCB Terminal blocks – Euro type Raising series

■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■ Single Deck; □Double decks; □Triple decks

Standard color: Black. Other colors also available.



Applications:



It can be used in PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military etc..



How to order:

300V 10A M3 Screw Terminal Block Connector 12 24 AWG PBT 6.2mm Spacing Brass 0



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10   600/5
Wire Range AWG 12-24   12-24
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 500 / 10 630 / 10 1000 / 10
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 4.0
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 10.6



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response and good after-sales service
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

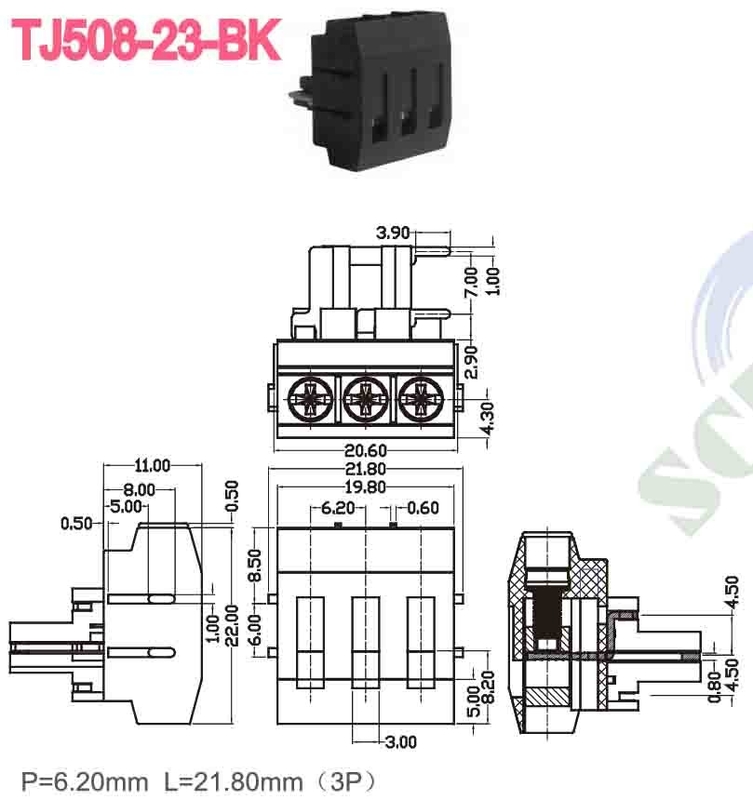

Drawing Photo


300V 10A M3 Screw Terminal Block Connector 12 24 AWG PBT 6.2mm Spacing Brass 1
