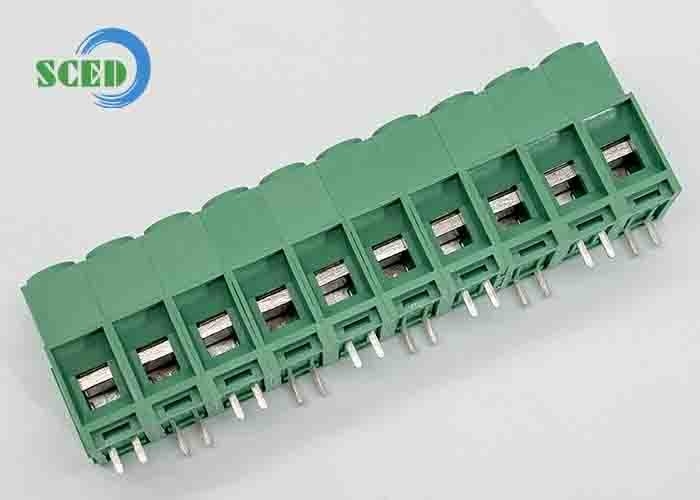

10.16mm 57A PCB Terminal Block Green Brass PA66 Nickel Plated

10.16mm 57A PCB Terminal Block Green Brass PA66 Nickel Plated

Products - PCB Terminal Block
  • Highlight

    Green Brass PCB Terminal Block

    ,

    10.16mm PCB Terminal Block

    ,

    Nickel Plated PCB Terminal Block

  • Color
    Green
  • Pitch
    10.16mm
  • Plastic
    PA66
  • Volt
    600V
  • Current
    57A
  • Poles
    Any Poles Available
  • Inflammability Class
    UL94-V0
  • Terminal
    Brass
  • Plating
    Nickel Plated
  • Stripping Length
    9-10mm
  • Place of Origin
    Suzhou China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE etc.
  • Model Number
    TJ952-04-10P-A1-D9
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.061-0.122
  • Packaging Details
    Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

10.16mm 57A PCB Terminal Block Green Brass PA66 Nickel Plated

  • 10.16mm 57A PCB Terminal Block Green Brass PA66 Nickel Plated
  • 10.16mm 57A PCB Terminal Block Green Brass PA66 Nickel Plated
  • 10.16mm 57A PCB Terminal Block Green Brass PA66 Nickel Plated
Get Price Contact Now

10.16mm 57A PCB Terminal Block Green Brass PA66 Nickel Plated



Detailed product Description:



Pitch 10.16mm, 600V 57A, 2P or 3P and Any poles available, PCB Terminal blocks – Euro type Raising series

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Deck;  ■Double decks;  □Triple decks

Standard color: Green. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



How to order:

10.16mm 57A PCB Terminal Block Green Brass PA66 Nickel Plated 0



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

 600/57



600/57

600/5

Wire Range                       AWG

 6-22



6-22

6-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 57

1000 / 57

1000 / 57

Rated Surge Voltage                 KV

 8



8

8

Rated Connecting Capacity           mm2

 10



Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Copper / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ1.8

Stripping Length                    mm

 9-10



Screw / Torque                    / lbf.in

M4 / 10.6-13.0



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

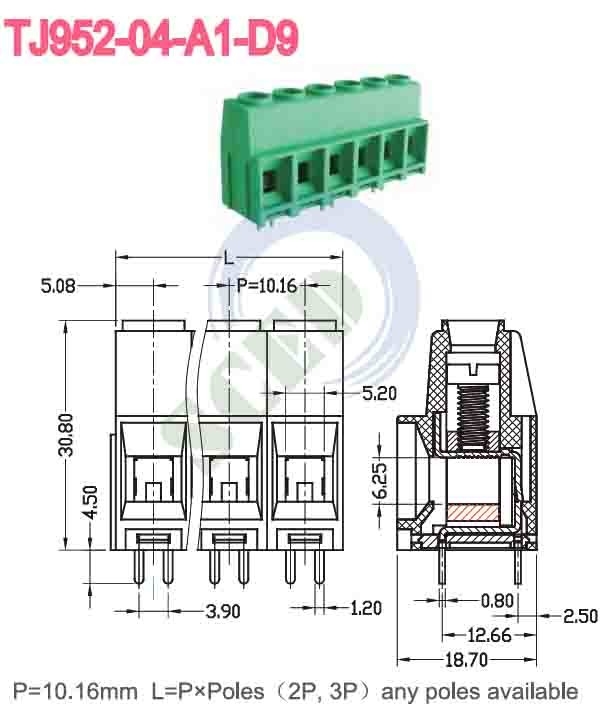

Drawing Photo


10.16mm 57A PCB Terminal Block Green Brass PA66 Nickel Plated 1
