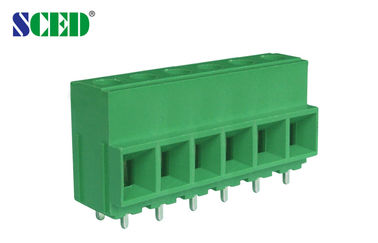

Pitch 5.08mm 7.62mm 10.16mm Screw Terminal Block din rail solder pin 300V UL94 V-0 Housing Plastic

Pitch 5.08mm 7.62mm 10.16mm Screw Terminal Block din rail solder pin 300V UL94 V-0 Housing Plastic

Products - PCB Terminal Block
  • Highlight

    pcb screw terminal blocks

    ,

    pcb terminal block connectors

  • Insulation Material
    PA66
  • Rated Voltage
    300V
  • Rated Surge Voltage
    8 KV
  • Screw
    M4//Steel/Zinc Plated
  • Clamp Cage
    Brass
  • Rated Connecting Capacity
    10 Mm²
  • Color
    Green
  • Torque
    10.6-13
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ952-01
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 5.08mm 7.62mm 10.16mm Screw Terminal Block din rail solder pin 300V UL94 V-0 Housing Plastic

  • Pitch 5.08mm 7.62mm 10.16mm Screw Terminal Block din rail solder pin 300V UL94 V-0 Housing Plastic
  • Pitch 5.08mm 7.62mm 10.16mm Screw Terminal Block din rail solder pin 300V UL94 V-0 Housing Plastic
Get Price Contact Now

Screw Terminal Block din rail solder pin 300V 57A  UL94 V-0 Housing  Plastic





Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/57

300/57



Wire Range                       AWG

6-22

6-22



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

690 / 57

1000 / 57

1000 / 57

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

10

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ2.4

Stripping Length                    mm

9-11

Screw / Torque                    / lbf.in

M4 / 10.6-13





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
