45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector

45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector

Products - High Current Terminal Block
  • Highlight

    4P High Current PC Terminal Block

    ,

    45.00mm Pitch PC Terminal Block

    ,

    4P Black Power Screw Connector

  • Pitch
    45.00mm
  • Poles
    4P
  • Voltage
    600V
  • Current
    300A
  • Housing Material
    PC
  • Conduction Board
    Brass/Nickel Plated
  • Color
    Black
  • Wire Range
    4-350kcmil
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR300-01-4P-FaM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector

  • 45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector
  • 45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector
  • 45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector
Get Price Contact Now

45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector





Data spec.



UL Technical Data B C D
Rated Voltage / Current V/A 600/300 600/300
Wire Range AWG 4-350kcmil 4-350kcmil
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 300 1000 / 300 1000 / 300
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 150
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board Plating Brass/Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 19-21
Screw / Torque / lbf.in M10 / 50-60

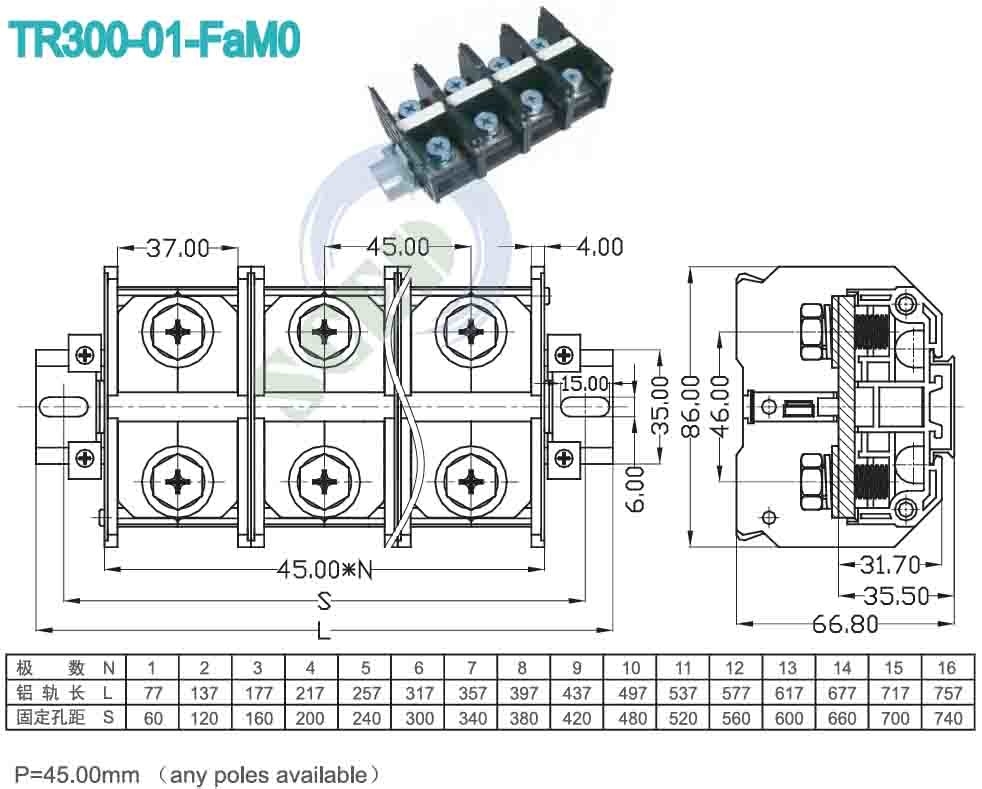

Drawing Specifications:







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



How to order:





45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector 0



Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

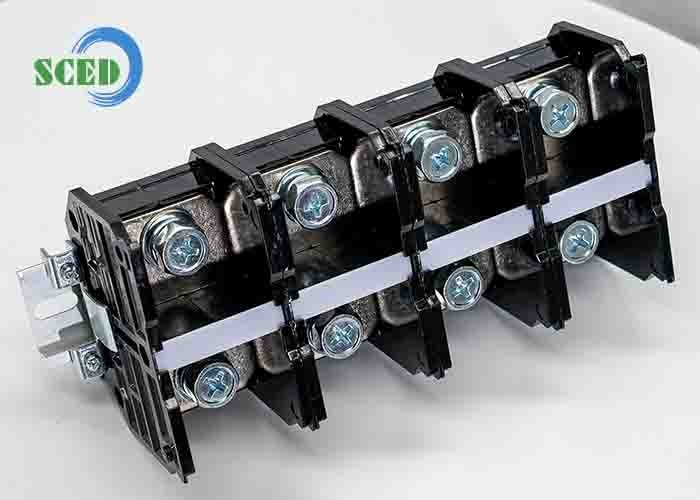

Drawing Photo

45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector 1

Factory Photo:



45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector 2

Certificates photo:

45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector 3
