300A Rail Termianl Block 47.0mm 600V Black PC Material Screw Mount Connector

300A Rail Termianl Block 47.0mm 600V Black PC Material Screw Mount Connector

Products - High Current Terminal Block
  • Highlight

    Black PC Screw Mount Connector

    ,

    300A Rail Termianl Block

    ,

    600V Rail Termianl Block

  • Type
    Rail Termianl Block
  • Pitch
    47.00mm
  • Poles
    Any Poles Available
  • Material
    PC
  • Color
    Black, Other Available
  • Current
    300A
  • Wire Range
    4-350kcmil
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR300-02-3P-BM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

300A Rail Termianl Block 47.0mm 600V Black PC Material Screw Mount Connector

  • 300A Rail Termianl Block 47.0mm 600V Black PC Material Screw Mount Connector
  • 300A Rail Termianl Block 47.0mm 600V Black PC Material Screw Mount Connector
  • 300A Rail Termianl Block 47.0mm 600V Black PC Material Screw Mount Connector
Get Price Contact Now

Rail Terminal Connector Block 47.0mm 600V Black PC Screw Mount Connector

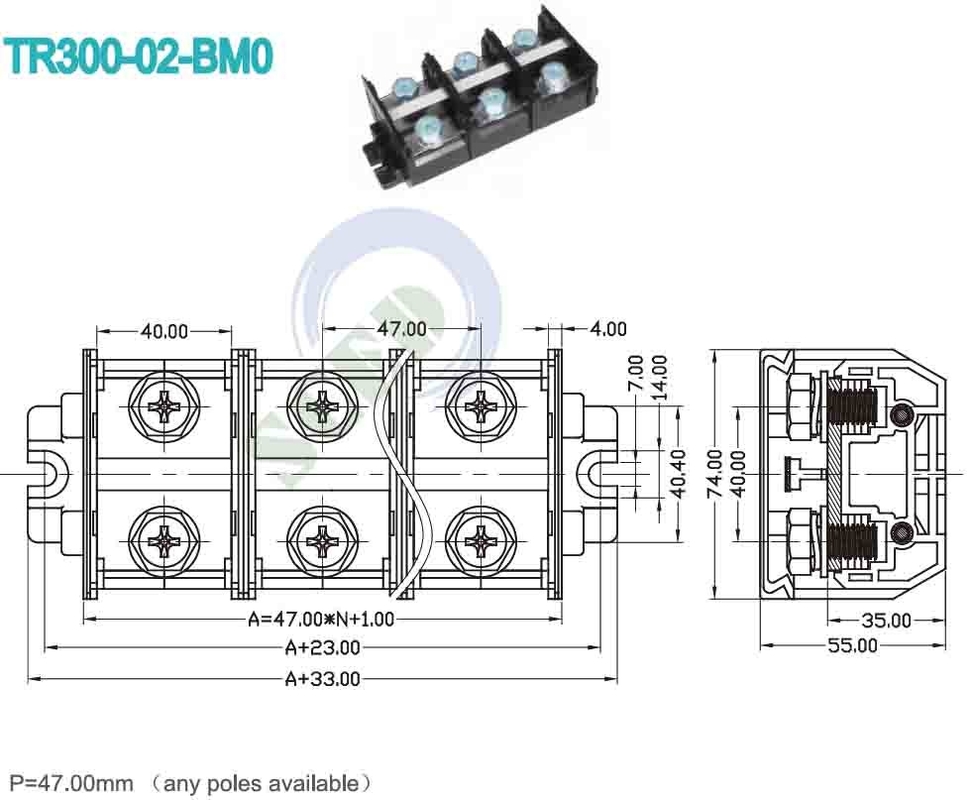

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 300 600 / 300
Wire Range AWG 4-350kcmil 4-350kcmil
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /300 1000 / 300 1000 / 300
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 150
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 19-21
Screw Torque mm M10 / 50-60







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



300A Rail Termianl Block 47.0mm 600V Black PC Material Screw Mount Connector 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

300A Rail Termianl Block 47.0mm 600V Black PC Material Screw Mount Connector 1
