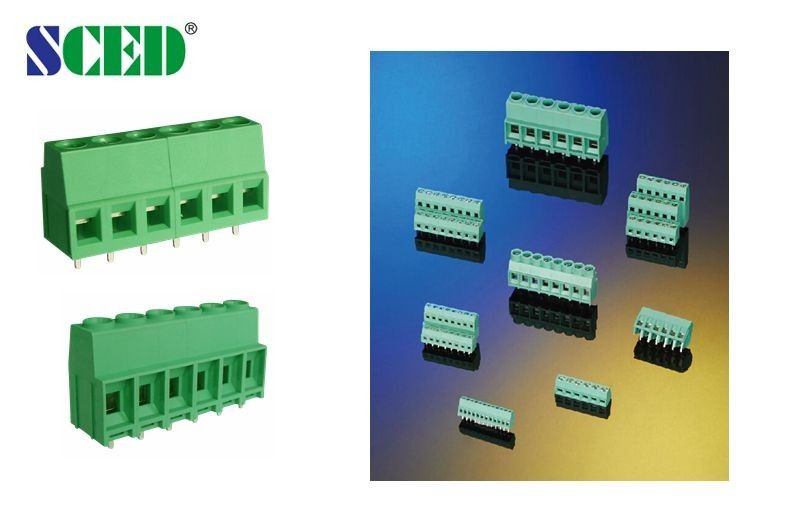

Pitch 3.50mm PCB Terminal Blocks With 45 Degree Wire Inlet Screw Terminal Connector

Pitch 3.50mm PCB Terminal Blocks With 45 Degree Wire Inlet Screw Terminal Connector

    • Pitch 3.50mm PCB Terminal Blocks With 45 Degree Wire Inlet Screw Terminal Connector
    • Pitch 3.50mm PCB Terminal Blocks With 45 Degree Wire Inlet Screw Terminal Connector
  • Pitch 3.50mm PCB Terminal Blocks With 45 Degree Wire Inlet Screw Terminal Connector

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ381-09

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Material: PA66 Color: Green, Other Color Available
    Wire Range: 16-24 AWG Screw: Steel/ M2
    Stripping Length: 4-5mm PCB Hole Diameter: φ1.3

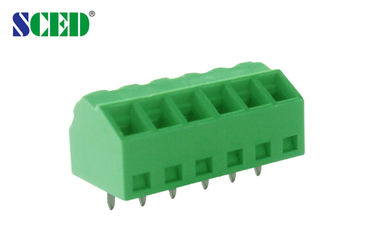

    Pitch 3.50mm PCB Terminal Blocks With 45 Degree Wire Inlet Screw Terminal Connector



    Descripition:



    1. Material: Plastic housing is PA66(UL94 V-0),

    2. Operating temperature: -40 ℃~+105℃,

    3. Clamp cage and header terminal using brass

    4. Spring clamp with phophor bronze

    5. Screw using high quality steel



    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 10





    Wire Range                       AWG

    16-24





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    160 / 10

    200 / 10

    400 / 10

    Rated Surge Voltage                 KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.0

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    PCB Hole Diameter                 mm

    φ1.3

    Stripping Length                    mm

    4-5

    Screw / Torque                    / lbf.in

    M2 / 1.8-2.0



    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand



    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
