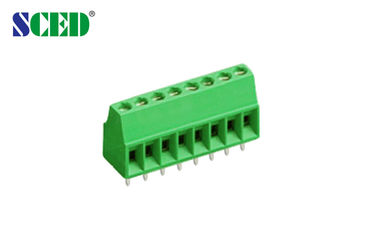

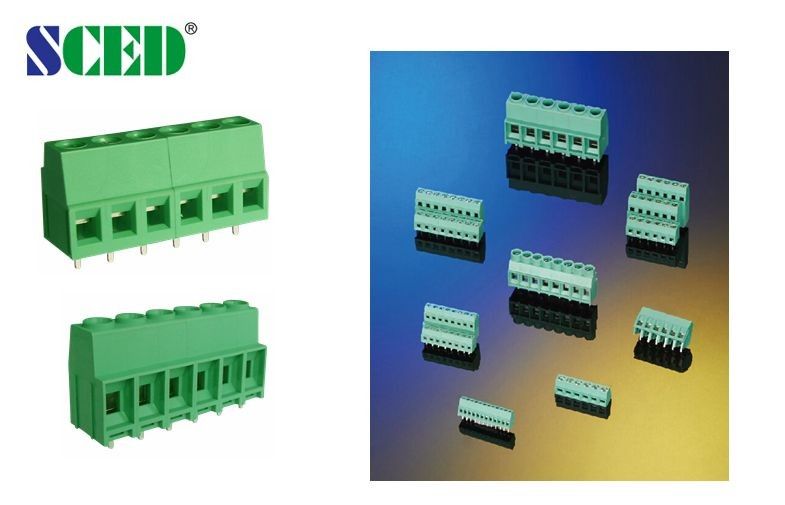

2.54mm PCB Terminal Blocks Screw Clamp Connection Nickel Plated 125v 6amp
Quick Details:
Model: TJ254-02
Pitch:2.54mm
Poles: 2P, 3P Or Any poles
Rated Voltage / Current:125V/ 6A
Wire Range: 16－30AWG
Housing: PA66 / UL94, V-0
Clamp Cage: Brass
Terminal: Brass
Screw: M1.6/Steel
Torque: 1-1.3/ lbf.in
Stripping Length: 7mm
Description:
1. PCB Euro Terninal Blocks is widely used in industry and automatic control, power, frequency conversion and etc.
2. It is consisted of plastic housing, clamp cage, terminal and screw.
3. It can be stacked to be different poles via 2P and 3P,
4. Wire inlet Direction: 45 90 180degree
4. Materials: Plastic housing is PA66(UL94 V-0) Operating temperature: -40~+105 Clamp cage and terminal is high quality brass or copper screw is high-quality steel
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
125 / 6 |
|
|
|
Wire Range AWG |
16-30 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
63 / 6 |
160 / 6 |
320 / 6 |
|
Rated Surge Voltage KV |
1.5 |
1.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
0.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.1 |
||
|
Stripping Length mm |
4-5 |
||
|
Screw / Torque / lbf.in |
M1.6 / 1.0-1.3 |
||
Application:
1. industry and automatic control,
2. power,
3. frequency conversion and etc.
Competitive Advantage:
Drawing Photo:
