Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass

Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass

  • Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass
  • Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass
Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass
Product Details:
Place of Origin: Guangdong China
Brand Name: SCED
Certification: CE, UL, CUL, CQC, VDE etc.
Model Number: TJ508-04
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.034-0.068 Per Pole
Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
Delivery Time: 5-20 days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Pitch: 5.08mm Poles: Any Poles Available
Volt: 300V Current: 10A
Insulation Material: PA66 Imflammability Class: UL94 V0
Clamp Cage: Brass Insulation Resistance: Above DC500V, 500MΩ
Contact Resistance: Less Than 8mΩ Rated Surge Voltage: No Abnormal Within 1 Minute

Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass





Detailed product Description:

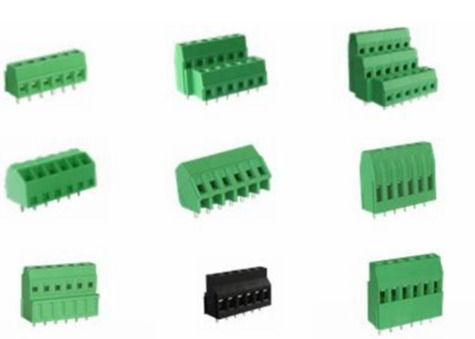

Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Green. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ1.5

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M3 / 4.4-5.3





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
