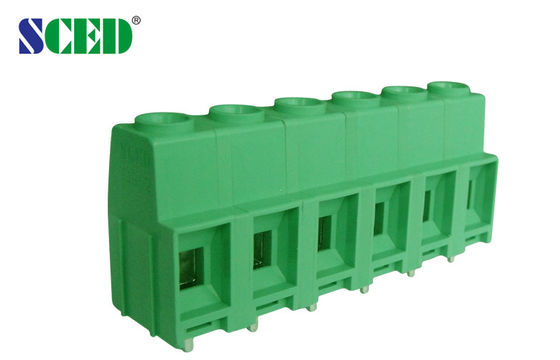

Pitch 12.70mm PCB Mount Terminal Block 2P - 16P Phoenix Terminal

Pitch 12.70mm PCB Mount Terminal Block 2P - 16P Phoenix Terminal

  • Pitch 12.70mm PCB Mount Terminal Block 2P - 16P Phoenix Terminal
Pitch 12.70mm PCB Mount Terminal Block 2P - 16P Phoenix Terminal
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ952-04-A1A3
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

pcb screw terminal blocks

,

pcb mount terminal block

Pitch 12.70mm PCB Mount Terminal Block 2P - 16P Phoenix Terminal







Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/57

300/57



Wire Range                       AWG

6-22

6-22



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

1000 / 57

1000 / 57

1000 / 57

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

10

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ2.2

Stripping Length                    mm

9-11

Screw / Torque                    / lbf.in

M4 / 10.6-13



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



Pitch 12.70mm PCB Mount Terminal Block 2P - 16P Phoenix Terminal 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch 12.70mm PCB Mount Terminal Block 2P - 16P Phoenix Terminal 1
