300V 57A PCB Terminal Block 10.16mm Screw Clamp Terminal Connection

300V 57A PCB Terminal Block 10.16mm Screw Clamp Terminal Connection

Products - PCB Terminal Block
  • Highlight

    pcb screw terminal blocks

    ,

    pcb mount terminal block

  • Pitch
    10.16mm
  • Poles
    2P, 3P Or Any Poles
  • Wire Range
    6-22 Awg
  • Housing
    PA66
  • Inflammability Class
    UL94, V-0
  • Screw
    M4
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ952-04-A1
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

300V 57A PCB Terminal Block 10.16mm Screw Clamp Terminal Connection

  • 300V 57A PCB Terminal Block 10.16mm Screw Clamp Terminal Connection
  • 300V 57A PCB Terminal Block 10.16mm Screw Clamp Terminal Connection
  • 300V 57A PCB Terminal Block 10.16mm Screw Clamp Terminal Connection
Get Price Contact Now



300V 57A PCB Terminal Block 10.16mm Screw Clamp Terminal Connection



Quick Detail:



Model: TJ952-04-A1

Pitch:10.16mm
Poles: 2P, 3P Or Any poles
Rated Voltage: 300v
Rated Current:
Wire Range:6-22 AWG



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/57

300/57



Wire Range                       AWG

6-22

6-22



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 57

1000 / 57

1000 / 57

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

10

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ2.2

Stripping Length                    mm

9-11

Screw / Torque                    / lbf.in

M4 / 10.6-13





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Applications:



PCB, Frequency Converters,

Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation,

Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

How to order:



300V 57A PCB Terminal Block 10.16mm Screw Clamp Terminal Connection 0

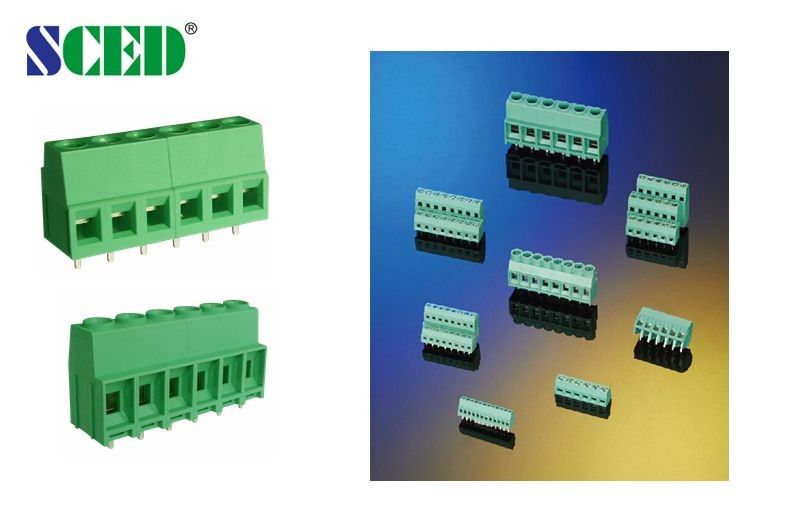

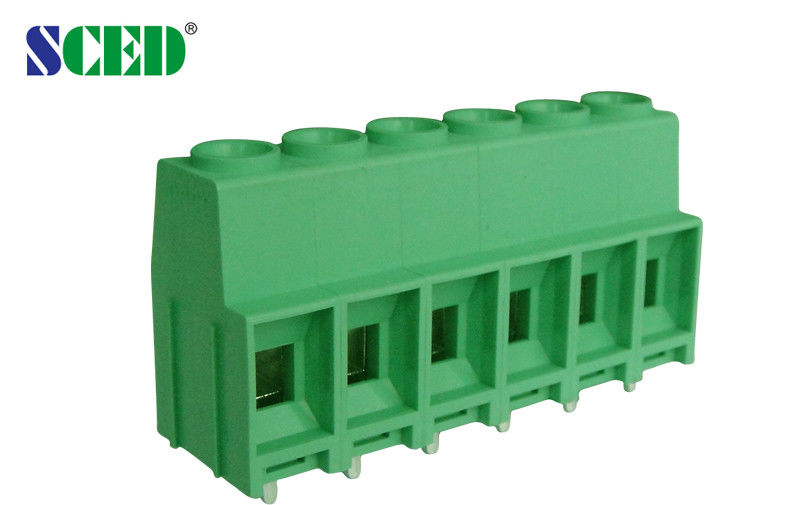

Drawing photo:
