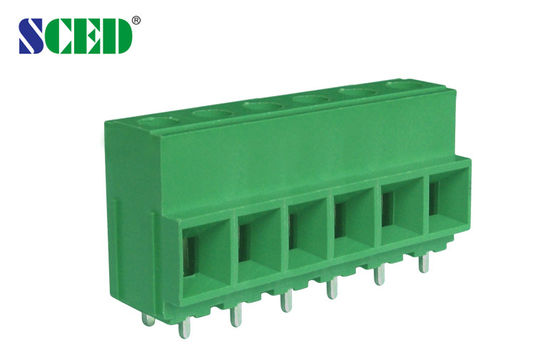

Pitch 10.16mm PCB screw terminal blocks 300V 57A UL - 0 Housing

Pitch 10.16mm PCB screw terminal blocks 300V 57A UL - 0 Housing

Pitch 10.16mm  PCB screw terminal blocks 300V 57A  UL - 0 Housing

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ952-01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

Pitch 10.16mm  PCB screw terminal blocks 300V 57A  UL - 0 Housing







Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/57

300/57



Wire Range                       AWG

6-22

6-22



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

690 / 57

1000 / 57

1000 / 57

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

10

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ2.4

Stripping Length                    mm

9-11

Screw / Torque                    / lbf.in

M4 / 10.6-13





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Pitch 10.16mm  PCB screw terminal blocks 300V 57A  UL - 0 Housing





Pitch 10.16mm  PCB screw terminal blocks 300V 57A  UL - 0 Housing
