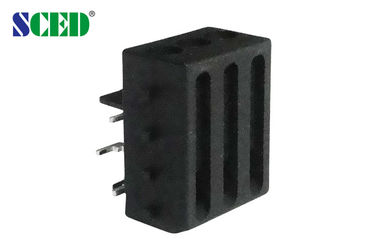

2P - 24P Screw PCB Terminal Block Pitch 6.20mm 300V 10A For Module Design

2P - 24P Screw PCB Terminal Block Pitch 6.20mm 300V 10A For Module Design

  • Highlight

    pcb screw terminal blocks

    ,

    pcb terminal block connectors

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ508-15-D10
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

2P - 24P Screw PCB Terminal Block Pitch 6.20mm 300V 10A For Module Design

2P - 24P Screw PCB Terminal Block Pitch 6.20mm 300V 10A For Module Design







Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/15
Wire Range AWG 10-24
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 15 800 / 15 1000 / 15
Rated Surge Voltage KV 6 6 8
Rated Connecting Capacity mm2 4.0
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 7-8
Screw / Torque / lbf.in M3 / 4.4-5.3





2P - 24P Screw PCB Terminal Block Pitch 6.20mm 300V 10A For Module Design 0



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



2P - 24P Screw PCB Terminal Block Pitch 6.20mm 300V 10A For Module Design 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



2P - 24P Screw PCB Terminal Block Pitch 6.20mm 300V 10A For Module Design 2
