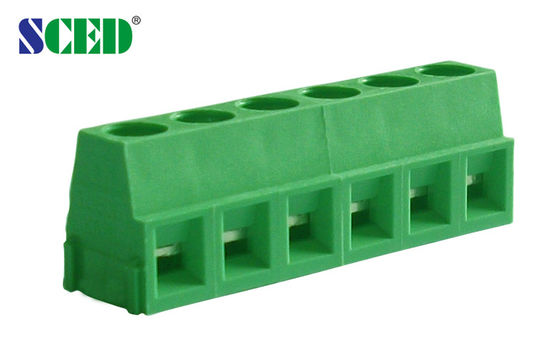

Pitch 5.08mm 300V 10A 2P - 24P Euro type Raising series Screw terminal block

Pitch 5.08mm 300V 10A 2P - 24P Euro type Raising series Screw terminal block

  • Pitch 5.08mm 300V 10A 2P - 24P Euro type  Raising series  Screw terminal block
Pitch 5.08mm 300V 10A 2P - 24P Euro type  Raising series  Screw terminal block
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ508-07V
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

pcb screw terminal blocks

,

pcb mount terminal block

Pitch 5.08mm 300V 10A 2P - 24P Euro type Raising series Screw terminal block





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10   300/10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.3
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3





Pitch 5.08mm 300V 10A 2P - 24P Euro type  Raising series  Screw terminal block 0





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Pitch 5.08mm 300V 10A 2P - 24P Euro type  Raising series  Screw terminal block 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch 5.08mm 300V 10A 2P - 24P Euro type  Raising series  Screw terminal block 2
