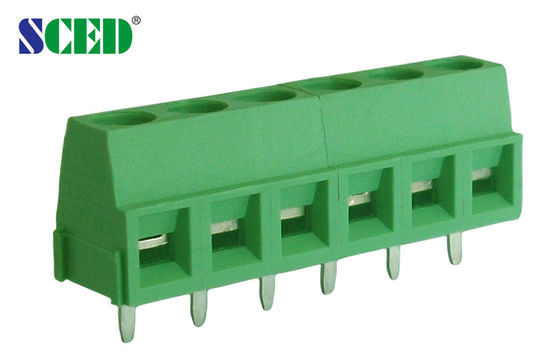

PCB Screw Terminal block  Pitch 5.08mm 300V 10A  Euro type Raising series

PCB Screw Terminal block Pitch 5.08mm 300V 10A Euro type Raising series

  • Highlight

    pcb screw terminal blocks

    ,

    pcb mount terminal block

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ508-07
  • Minimum Order Quantity
    50
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

PCB Screw Terminal block Pitch 5.08mm 300V 10A Euro type Raising series

PCB Screw Terminal block Pitch 5.08mm 300V 10A Euro type Raising series





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10   300/10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3







PCB Screw Terminal block  Pitch 5.08mm 300V 10A  Euro type Raising series 0





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



PCB Screw Terminal block  Pitch 5.08mm 300V 10A  Euro type Raising series 1

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

PCB Screw Terminal block  Pitch 5.08mm 300V 10A  Euro type Raising series 2
