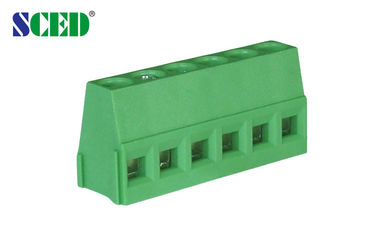

Raising Series Pitch 5.08mm 300V 10A PCB Terminal block Popular Item for Power Device

Raising Series Pitch 5.08mm 300V 10A PCB Terminal block Popular Item for Power Device

  • Raising Series Pitch 5.08mm 300V 10A PCB Terminal block  Popular Item for Power Device
Raising Series Pitch 5.08mm 300V 10A PCB Terminal block  Popular Item for Power Device
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ508-00V-T1
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

pcb screw terminal blocks

,

pcb terminal block connectors

Raising Series Pitch 5.08mm 300V 10A PCB Terminal block Popular Item for Power Device



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10   300/10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3





Raising Series Pitch 5.08mm 300V 10A PCB Terminal block  Popular Item for Power Device 0





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





Raising Series Pitch 5.08mm 300V 10A PCB Terminal block  Popular Item for Power Device 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Raising Series Pitch 5.08mm 300V 10A PCB Terminal block  Popular Item for Power Device 2
