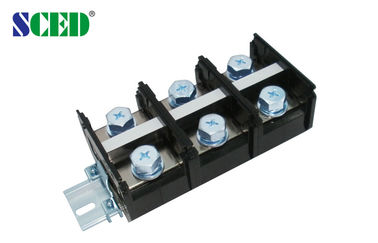

High Current Terminal connector Pitch 47.00mm 600V 300A any poles available

High Current Terminal connector Pitch 47.00mm 600V 300A any poles available

  • High Current Terminal connector  Pitch 47.00mm  600V 300A  any poles available
High Current Terminal connector  Pitch 47.00mm  600V 300A  any poles available
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE, CQC
Model Number: TR300-02-FaM0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

pcb wire terminals

,

power terminal block

High Current Terminal connector Pitch 47.00mm 600V 300A any poles available







Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 300 600 / 300
Wire Range AWG 4-350kcmil 4-350kcmil
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 300 1000 / 300 1000 / 300
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 150
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 19-21
Screw Torque mm M10 / 50-60







High Current Terminal connector  Pitch 47.00mm  600V 300A  any poles available    0



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





High Current Terminal connector  Pitch 47.00mm  600V 300A  any poles available    1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



High Current Terminal connector  Pitch 47.00mm  600V 300A  any poles available    2
