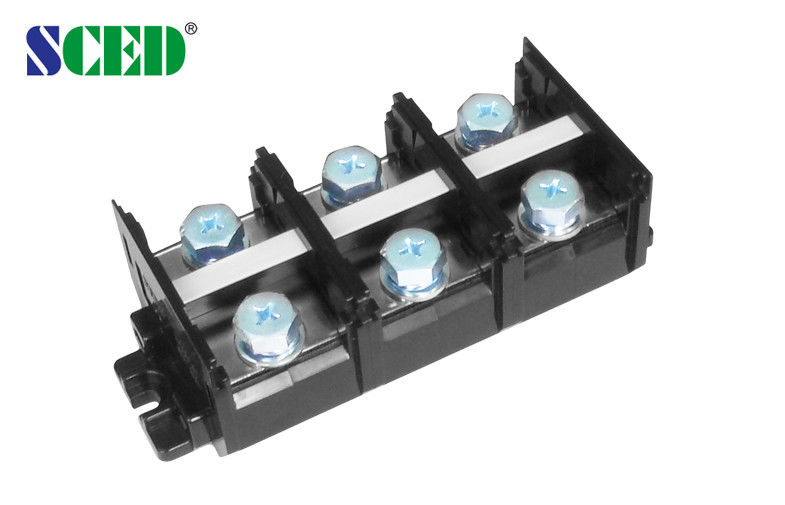

High Current Terminal connector Pitch 47.00mm 600V 300A any poles available

High Current Terminal connector Pitch 47.00mm 600V 300A any poles available

Products - High Current Terminal Block
  • Highlight

    wiring terminal blocks

    ,

    power terminal block

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TR300-02-BM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

High Current Terminal connector Pitch 47.00mm 600V 300A any poles available

  • High Current Terminal connector Pitch 47.00mm 600V 300A any poles available
  • High Current Terminal connector Pitch 47.00mm 600V 300A any poles available
Get Price Contact Now

High Current Terminal connector Pitch 47.00mm 600V 300A any poles available





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 300 600 / 300
Wire Range AWG 4-350kcmil 4-350kcmil
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /300 1000 / 300 1000 / 300
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 150
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 19-21
Screw Torque mm

M10 / 50-60







High Current Terminal connector Pitch 47.00mm 600V 300A any poles available 0



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





High Current Terminal connector Pitch 47.00mm 600V 300A any poles available 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





High Current Terminal connector Pitch 47.00mm 600V 300A any poles available 2
