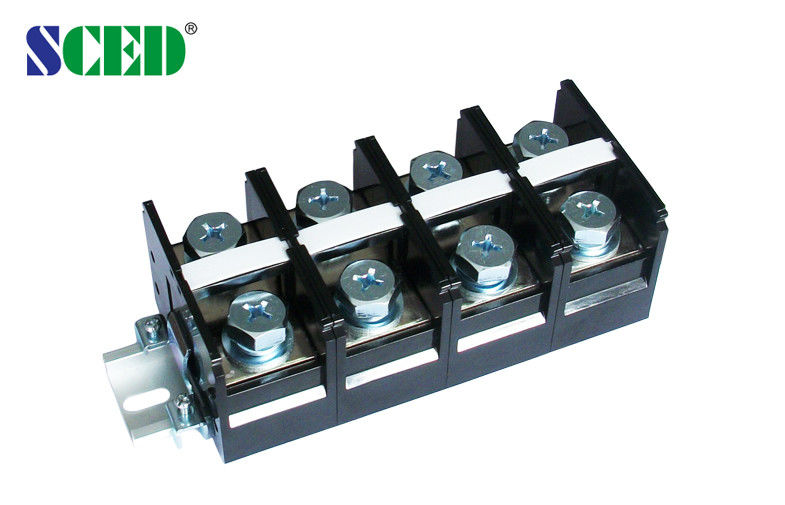

Pitch 36.00mm 600V 240A any poles available, High Current Terminal connector
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 240 | 600 / 240 | |
| Wire Range AWG | 4-250kcmil | 4-250kcmil | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 1000 /240 | 1000 / 240 | 1000 / 240 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 125 | ||
| Material | |||
| Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
| Conduction Board/ Plating | Brass /Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 18-20 | ||
| Screw Torque mm | M10 / 50-60 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
Our services cover all industries and reach all parts of the world.
