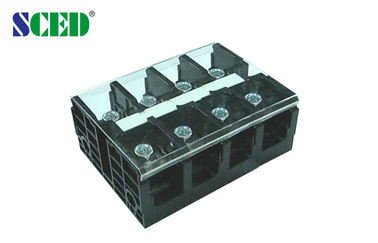

High Current Terminal connector Pitch 31.00mm 600V 200A any poles available
-
Highlight
wiring terminal blocks
,power terminal block
-
Place of OriginShenzhen, China
-
Brand NameSCED
-
CertificationUL, CE, CQC
-
Model NumberTR200-02-BCM0
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
High Current Terminal connector Pitch 31.00mm 600V 200A any poles available
High Current Terminal connector Pitch 31.00mm 600V 200A any poles available
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 200 | 600 / 200 | |
| Wire Range AWG | 4/0-20 | 4/0-20 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 /200 | 1000 / 200 | 1000 / 200 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 80 | ||
| Material | |||
| Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
| Conduction Board/ Plating | Brass /Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 14-18 | ||
| Screw Torque mm | M8 / 31-40 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
