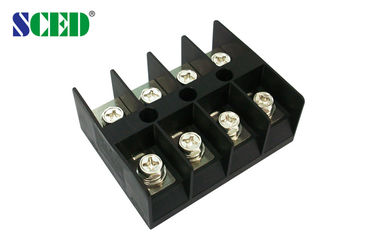

High Current Terminal connector  Pitch 20.00mm   600V 100A   any poles available

High Current Terminal connector Pitch 20.00mm 600V 100A any poles available

  • Highlight

    pcb wire terminals

    ,

    wiring terminal blocks

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TR100-01-N5
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

High Current Terminal connector Pitch 20.00mm 600V 100A any poles available

High Current Terminal connector Pitch 20.00mm 600V 100A any poles available





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 100 600 / 100
Wire Range AWG 3-20 3-20
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /100 1000 / 100 1000 / 100
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 25
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Nickel Plated
Other Data
Stripping Length mm 16-18
Screw Torque mm M6 / 18-22





High Current Terminal connector  Pitch 20.00mm   600V 100A   any poles available    0



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





High Current Terminal connector  Pitch 20.00mm   600V 100A   any poles available    1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

High Current Terminal connector  Pitch 20.00mm   600V 100A   any poles available    2
