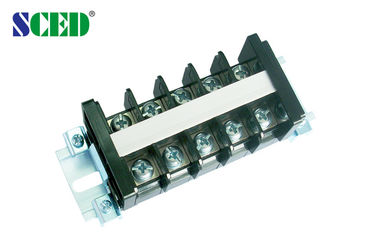

Pitch 14.00mm 600V 60A High Current Terminal connector any poles available

Pitch 14.00mm 600V 60A High Current Terminal connector any poles available

Products - High Current Terminal Block
  • Highlight

    pcb wire terminals

    ,

    wiring terminal blocks

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TR60-01-FaM0-N7
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 14.00mm 600V 60A High Current Terminal connector any poles available

  • Pitch 14.00mm 600V 60A High Current Terminal connector any poles available
  • Pitch 14.00mm 600V 60A High Current Terminal connector any poles available
Get Price Contact Now

Pitch 14.00mm 600V 60A High Current Terminal connector any poles available





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 60 600 / 60
Wire Range AWG 4-20 4-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /60 1000 / 60 1000 / 60
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 14
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 12-15
Screw Torque mm M5 / 14-18





Pitch 14.00mm 600V 60A High Current Terminal connector any poles available 0



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





Pitch 14.00mm 600V 60A High Current Terminal connector any poles available 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Pitch 14.00mm 600V 60A High Current Terminal connector any poles available 2
