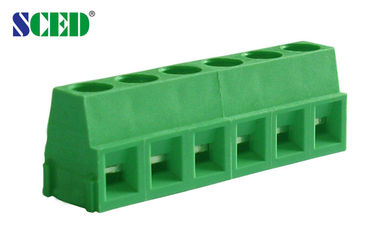

3 Pin / 6 Pin PCB Terminal Blocks Connectors Pitch 5.08mm OEM ODM

3 Pin / 6 Pin PCB Terminal Blocks Connectors Pitch 5.08mm OEM ODM

  • 3 Pin / 6 Pin PCB Terminal Blocks Connectors Pitch 5.08mm OEM ODM
3 Pin / 6 Pin PCB Terminal Blocks Connectors Pitch 5.08mm OEM ODM
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ508-07V
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
Number Of Contacts: 2P-24P Pitch: 5.08mm
Rated Current: 10A Rated Voltage: 300V
High Light:

pcb terminal block connectors

,

pcb mount terminal block



3 Pin / 6 Pin PCB Terminal Blocks Connectors Pitch 5.08mm OEM ODM





Type:

PCB Terminal blocks,   PCB screw terminal blocks,              Euro type Raising series

Pitch:

5.08mm

Rated Voltage:

300V

Rated Current:

10A

Standard Color:

Green, other color is available

Number Of Contacts:

2P-24P

Wire Range:

12-26AWG

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Elevator, etc.



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks , PCB screw terminal blocks, Euro type Raising series





UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ1.3

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



3 Pin / 6 Pin PCB Terminal Blocks Connectors Pitch 5.08mm OEM ODM 0



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

3 Pin / 6 Pin PCB Terminal Blocks Connectors Pitch 5.08mm OEM ODM 1



Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

 3 Pin / 6 Pin PCB Terminal Blocks Connectors Pitch 5.08mm OEM ODM 2
