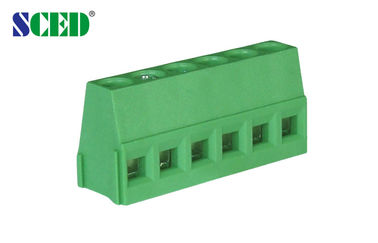

PCB Screw Terminal Blocks Pitch 5.08mm 300V 10A 2Poles - 24Poles

PCB Screw Terminal Blocks Pitch 5.08mm 300V 10A 2Poles - 24Poles

  • Highlight

    pcb terminal block connectors

    ,

    pcb mount terminal block

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ508-00V-T1
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    800K poles each monthly

PCB Screw Terminal Blocks Pitch 5.08mm 300V 10A 2Poles - 24Poles

PCB Screw Terminal Blocks Pitch 5.08mm 300V 10A 2Poles - 24Poles



Type:

PCB Terminal blocks,   PCB screw terminal blocks,              Euro type Raising series

Pitch:

5.08mm

Rated Voltage:

300V

Rated Current:

10A

Standard Color:

Green, other color is available

Number Of Contacts:

2P-24P

Wire Range:

12-26AWG

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Elevator, etc.

Euro type Raising series, Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks , PCB screw terminal blocks



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ1.4

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3

PCB Screw Terminal Blocks Pitch 5.08mm 300V 10A 2Poles - 24Poles 0

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

PCB Screw Terminal Blocks Pitch 5.08mm 300V 10A 2Poles - 24Poles 1

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers' demand

PCB Screw Terminal Blocks Pitch 5.08mm 300V 10A 2Poles - 24Poles 2
