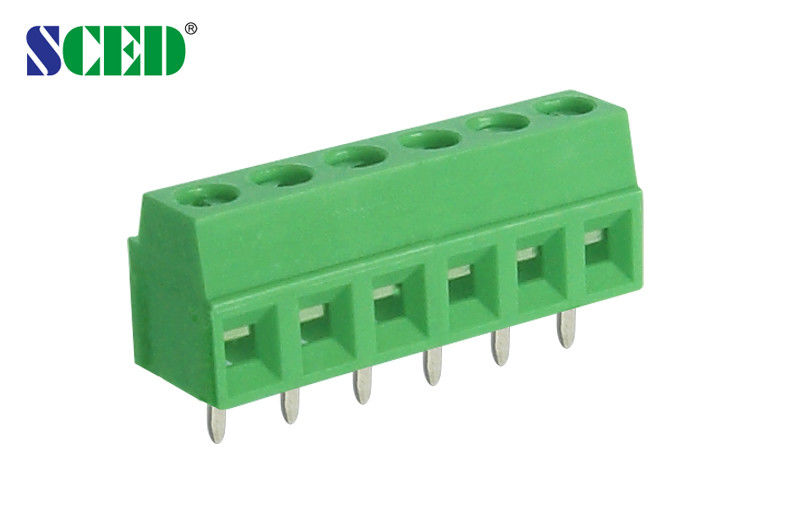

300V 10A, PCB Terminal Block , Pitch 3.5mm Screw Terminal Blocks 2-24P

300V 10A, PCB Terminal Block , Pitch 3.5mm Screw Terminal Blocks 2-24P

    • 300V 10A, PCB Terminal Block , Pitch 3.5mm Screw Terminal Blocks 2-24P
  • 300V 10A, PCB Terminal Block , Pitch 3.5mm Screw Terminal Blocks 2-24P

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ381-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 15-30 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
    Pitch: 3.5mm Rated Current: 10A
    Rated Voltage: 300V Wire Range: 16-24
    Inflamemability Class: UL94, V-0 Torque: 2.0 LBF.IN
    High Light:

    pcb screw terminal blocks

    ,

    pcb mount terminal block

    PCB Terminal Block , Pitch 3.5mm Screw Terminal Blocks



     Detailed product Description:



     PCB Terminal blocks, Pitch 3.5mm, 300V 10A, 2P-28P, PCB screw terminal blocks, Euro type Raising series



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/10





    Wire Range                       AWG

    16-24





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    160 / 10

    200 / 10

    400 / 10

    Rated Surge Voltage                 KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.0

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.3

    Stripping Length                    mm

    4-5

    Screw / Torque                    / lbf.in

    M2 / 1.8-2.0

      Drawing Specifications:

     300V 10A, PCB Terminal Block , Pitch 3.5mm Screw Terminal Blocks 2-24P 0



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:

     300V 10A, PCB Terminal Block , Pitch 3.5mm Screw Terminal Blocks 2-24P 1



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers' demand
